Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
| Product Name | Arm Cylinder Seal Repair Kit |
| Part Number | 31Y1-32450, 31Y132450 |
| Model |
9-SERIES CRAWLER EXCAVATOR R250LC-9, R250LC-9A, R260LC-9S, R260LC-9A; F-SERIES CRAWLER EXCAVATOR HX260L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |

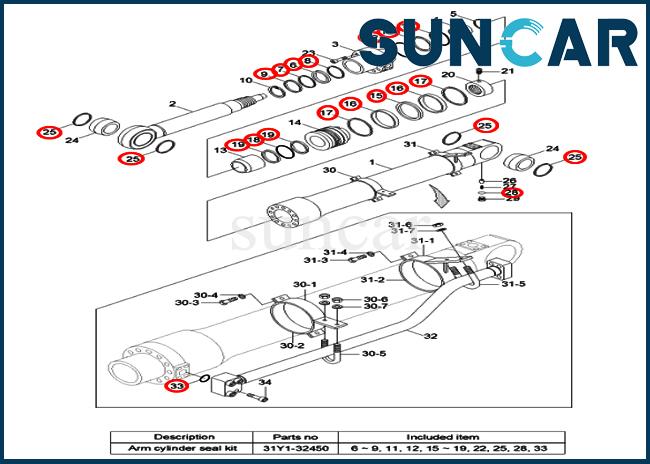

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q7-50130 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-32191 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-32200 | [1] | TUBE ASSY |
| 2 | 31Y1-32260 | [1] | ROD ASSY |
| 3 | 31Y1-32321 | [1] | GLAND |
| 4 | S732-105040 | [1] | BUSHING-DD2 |
| 5 | Y191-112000 | [1] | RING-SNAP |
| K6. | Y220-105013 | [1] | SEAL-ROD |
| K7. | Y180-105120 | [1] | RING-BACK UP |
| K8. | Y240-105012 | [1] | RING-BUFFER |
| K9. | Y110-105011 | [1] | WIPER-DUST |
| 10 | Y190-121000 | [1] | RING-SNAP |
| K11. | S631-135004 | [1] | O-RING |
| K12. | 31YC-CP135 | [1] | RING-BACK UP |
| 13 | 31YC-28090 | [1] | RING-CUSHION |
| 14 | 31Y1-32360 | [1] | PISTON |
| K15. | Y420-145000 | [1] | SEAL-PISTON |
| K16. | Y310-145003 | [2] | RING-WEAR |
| K17. | Y440-145102 | [2] | RING-DUST |
| K18. | S632-080004 | [1] | O-RING |
| K19. | S642-080003 | [2] | RING-BACK UP |
| 20 | 31YC-68090 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-145004 | [1] | O-RING |
| 23 | S109-200904 | [12] | BOLT-SOCKET |
| 24 | 61Q6-97420 | [2] | BUSHING-PIN |
| K25. | Y020-090100 | [4] | SEAL-DUST,DLI,KPU |
| 26 | 31YC-2A070 | [1] | VALVE-CHECK |
| 27 | 31YC-99071 | [1] | SPRING-COIL |
| K28. | S631-014004 | [1] | O-RING |
| 29 | P220-110103 | [1] | PLUG-HEX |
| 30 | 31Y1-32380 | [1] | BAND ASSY-R |
| 30-1. | 31Y1-32390 | [1] | BAND SUB ASSY |
| 30-2. | 31YC-31460 | [1] | BAND |
| 30-3. | S015-120452 | [2] | BOLT-HEX |
| 30-4. | S411-120002 | [2] | WASHER-SPRING |
| 30-5. | S070-053442 | [1] | U-BOLT |
| 30-6. | S205-101002 | [2] | NUT-HEX |
| 30-7. | S411-100002 | [2] | WASHER-SPRING |
| 31 | 31Y1-32400 | [1] | BAND ASSY-B |
| 31-1. | 31Y1-32410 | [1] | BAND SUB ASSY |
| 31-2. | 31Y1-32420 | [1] | BAND SUB ASSY |
| 31-3. | S015-120452 | [2] | BOLT-HEX |
| 31-4. | S411-120002 | [2] | WASHER-SPRING |
| 31-5. | S070-053442 | [1] | U-BOLT |
| 31-6. | S205-101002 | [2] | NUT-HEX |
| 31-7. | S411-100002 | [2] | WASHER-SPRING |
| 32 | 31Y1-32430 | [1] | PIPE ASSY-R |
| K33. | Y171-024004 | [1] | O-RING |
| 34 | S107-120554 | [4] | BOLT-SOCKET |
| K. | 31Y1-32450 | [1] | SEAL KIT |
