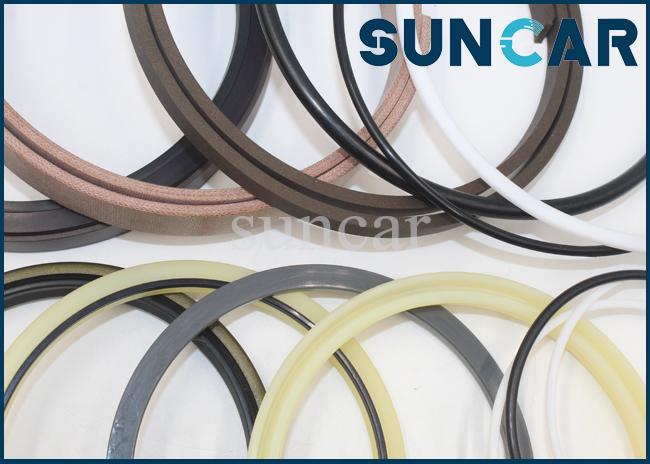

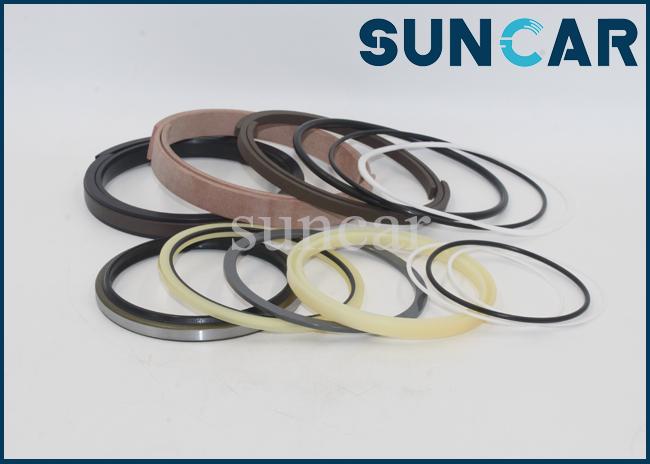

Service Kits 31Y1-34010 31Y134010 Bucket Cylinder Seal Kit For R360LC-9 R430LC-9 Hyundai Excavator
Service Kits 31Y1-34010 31Y134010 Bucket Cylinder Seal Kit For R360LC-9 R430LC-9 Hyundai Excavator
| Product Name | Bucket Cylinder Seal Kit |
| Part Number | 31Y1-34010, 31Y134010 |
| Model |
9-SERIES CRAWLER EXCAVATOR R360LC-9, R380LC-9SH, R390LC-9(INDIA), R430LC-9 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Related Parts:

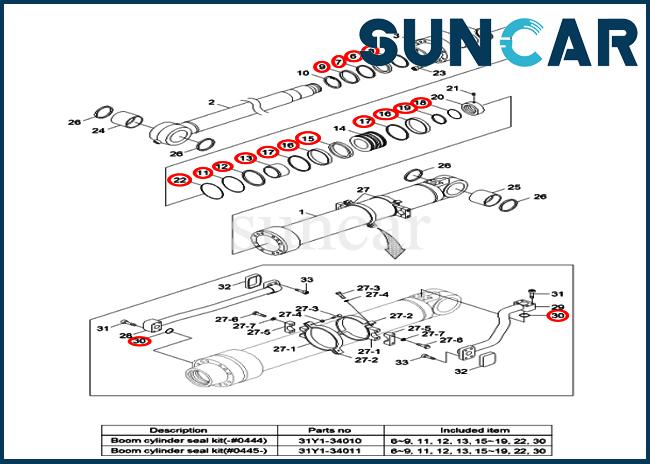

| Pos. | Part No | Qty | Parts name |
| *. | 31QA-60110 | [1] | BUCKET CYLINDER ASSY |
| *. | 31QA-60111 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-33880 | [1] | BUCKET CYL SUB ASSY |
| *-1. | 31Y1-33881 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-33890 | [1] | TUBE ASSY |
| 2 | 31Y1-33930 | [1] | ROD ASSY |
| 2 | 31Y1-44510 | [1] | ROD ASSY |
| 3 | 31Y1-33970 | [1] | GLAND |
| 4 | S732-105040 | [1] | BUSHING-DD2 |
| 5 | Y191-112000 | [1] | RING-SNAP |
| K6. | Y220-105013 | [1] | SEAL-ROD |
| K7. | Y180-105120 | [1] | RING-BACK UP |
| K8. | Y240-105012 | [1] | RING-BUFFER |
| K9. | Y110-105011 | [1] | WIPER-DUST |
| 10 | Y190-121000 | [1] | RING-SNAP |
| K11. | S631-140004 | [1] | O-RING |
| K12. | 31YC-BP140 | [1] | RING-BACK UP |
| K13. | 31YC-26090 | [1] | RING-CUSHION |
| 14 | 31Y1-33310 | [1] | PISTON |
| 14 | 31Y1-33311 | [1] | PISTON |
| K15. | Y420-150000 | [1] | SEAL-PISTON |
| K16. | Y310-150003 | [2] | RING-WEAR |
| K17. | Y440-150200 | [2] | RING-DUST |
| K18. | S632-080004 | [1] | O-RING |
| K19. | S642-080003 | [2] | RING-BACK UP |
| 20 | 31YC-68090 | [1] | NUT-LOCK |
| 20 | 31YC-68170 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| 22 | S632-145004 | [1] | O-RING |
| 23 | S109-240904 | [12] | BOLT-SOCKET |
| 24 | 61Q6-05600 | [1] | BUSHING |
| 25 | 61Q6-97420 | [1] | BUSHING-PIN |
| 25 | 61QH-73220 | [1] | BUSHING |
| 26 | Y020-090100 | [1] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-33980 | [2] | BAND ASSY |
| 27-1. | 31Y1-33990 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31420 | [1] | BAND |
| 27-3. | S015-120452 | [2] | BOLT-HEX |
| 27-4. | S411-120002 | [2] | WASHER-SPRING |
| 27-5. | 31YC-37050 | [1] | CLAMP-PIPE |
| 27-6. | S015-120502 | [2] | BOLT-HEX |
| 27-7. | S411-120002 | [2] | WASHER-SPRING |
| 28 | 31Y1-34000 | [1] | PIPE ASSY-R |
| 29 | 31Y1-22710 | [1] | PIPE ASSY-B |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120604 | [8] | BOLT-SOCKET |
| 32 | 31YC-5A110 | [2] | COVER-DUST |
| 33 | S011-120152 | [8] | BOLT-HEX |
| K. | 31Y1-34010 | [1] | SEAL KIT |
| K. | 31Y1-34011 | [1] | SEAL KIT |
Our Service:
(1) Experienced sealing products supplier.
(2) Professional design team and sales department for your service.
(3) All the questions will be dealt in 24 hours.
(4) Stable quality---coming from good materials.
(5) Lower price---not cheapest but the lowest at the same quality.
(6) Good service---satisfied factory service before and after sale.
(7) Delivery time---7days-15days for mass production.
(8) Your inquiry will be replied in one working day.
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
(1) Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
(2) Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
(3) Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
