209-63-56101 Boom Cylinder Seal Repair Kit Wear Resistance Komatsu PC650-1 Sealing Kits
209-63-56101 Boom Cylinder Seal Repair Kit Wear Resistance Komatsu PC650-1 Sealing Kits
| Product Name | Boom Cylinder Seal Repair Kit |
| Part Number | 209-63-56101, 2096356101 |
| Model | KOMATSU PC650-1 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |

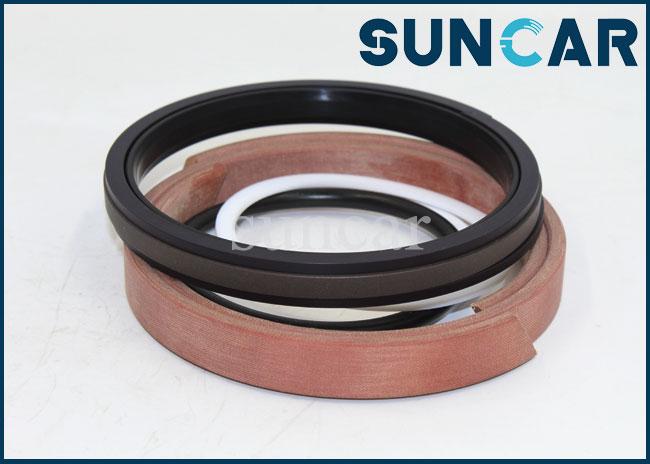

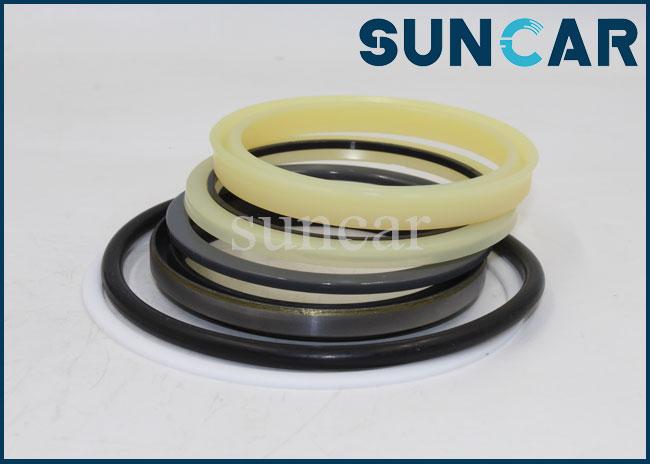

Product Show:
Some Policies Regarding Product Ordering:
- Payment Policy:
We accept PayPal, TT, Western Union.
- Shipping Policy:
Usually ships within 3 business days of receiving the order.
- Refund policy:
We allow product replacement, and returned items must be in brand new condition, unused, including original parts and labels. Shipping or any other related charges will be paid by the buyer. We do not accept returns if the item is installed or damaged for some reason.
- Responsibility:
We are only responsible for the parts we sell. If there is any problem with the parts, we can accept returns, refunds or replacements, please understand that we do not compensate you for labor, trailers, repairs, rental costs or any other related costs.
Related Parts:
| Pos. | Part No | Parts name | Qty |
| 209-63-56102 | CYLINDER ASSEMBLY | 2 | |
| 209-63-56101 | CYLINDER ASSENBLY | 2 | |
| 1 | 209-63-56120 | • ROD | 1 |
| 2 | 707-46-11510 | • BUSHING | 1 |
| 3 | 707-46-11530 | • BUSHING | 1 |
| 4 | 707-75-12010 | • RING | 1 |
| 4 | 07179-00145 | • RING | 1 |
| 5 | 195-63-93170 | • SEAL | 1 |
| 6 | 01011-82440 | • BOLT | 2 |
| 7 | 01602-22472 | • WASHER | 8 |
| 8 | 209-98-11510 | • BRACKET | 1 |
| 9 | 01643-32460 | • WASHER | 2 |
| 10 | 01011-82400 | • BOLT | 6 |
| 11 | 209-63-56190 | • COVER | 1 |
| 12 | 707-28-20140 | • HEAD | 1 |
| 13 | 07042-20108 | • PLUG | 1 |
| 14 | 209-63-56270 | • CAPILLARY | 1 |
| 15 | 07002-11823 | • O-RING | 1 |
| 16 | 07000-11009 | • O-RING | 1 |
| 17 | 07001-01009 | • RING | 1 |
| 18 | 07001-05200 | • RING | 1 |
| 19 | 07000-15200 | • O-RING | 1 |
| 20 | 07177-01240 | • BUSHING | 1 |
| 21 | 707-51-12110 | • PACKING | 1 |
| 22 | 209-63-56160 | • RING | 1 |
| 23 | 209-63-56170 | • COLLAR | 1 |
| 24 | 209-63-56180 | • PLUNGER | 1 |
| 25 | 707-44-20080 | • RING | 1 |
| 26 | 07156-02022 | • RING | 1 |
| 27 | 07155-02045 | • RING | 1 |
| 27 | 07156-02022 | • RING | 1 |
| 28 | 707-36-20330 | • PISTON | 1 |
| 28 | 707-36-20371 | • PISTON | 1 |
| 29 | 07165-18583 | • NUT | 1 |
| 30 | 209-63-56142 | • CYLINDER | 1 |
| 31 | 07020-00000 | • FITTING,GREASE | 2 |
Company Profile:
(1) Since the beginning of 2008, SUNCAR has put quality as our first duty. Thereupon product development has kept abreast with the world famous manufacturers.
(2) With an enviable reputation within the sealing industry. SUNCAR products and service that provides are recognized as amongst the very best.
(3) With over ten years experience in the manufacture of Seals for heavy equipment and the general industries, we are constantly upgrading our range of products and raw materials to enhance its, performance and life span.We believe the vitality of a company's efforts today is a gauge of its success tomorrow.
