Service Kit 707-99-68650 7079968650 Bucket Cylinder Oil Seal Kits For PC750-6 PC750SE-6 Komatsu
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Service Kit 707-99-68650 7079968650 Bucket Cylinder Oil Seal Kits For PC750-6 PC750SE-6 Komatsu
| Product Name | Bucket Cylinder Oil Seal Kits |
| Part Number | 707-99-68650, 7079968650 |
| Model | KOMATSU PC750-6, PC750SE-6 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Product Description:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
- There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
- Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
- Arm cylinder is the top one, and it's usually be called as top cylinder;
- Bucket cylinder is the one that connects and controls the bucket.
Related Parts:
| Pos. | Part No | Parts Name | Qty |
| G-1 | 209-63-X6470 | CYLINDER GROUP | 1 |
| 209-63-06470 | CYLINDER ASSEMBLY | 1 | |
| 1 | 209-63-77840 | • CYLINDER | 1 |
| 2 | 707-76-11130 | • BUSHING | 1 |
| 3 | 07145-00110 | • SEAL,DUST (KIT) | 2 |
| 4 | 07043-00108 | • PLUG | 1 |
| 5 | 707-27-18860 | • HEAD,CYLINDER | 1 |
| 6 | 707-51-12030 | • PACKING,ROD (KIT) | 1 |
| 7 | 707-51-12630 | • RING,BUFFER (KIT) | 1 |
| 8 | 707-52-90980 | • BUSHING | 1 |
| 9 | 707-56-12080 | • SEAL,DUST (KIT) | 1 |
| 10 | 707-75-12520 | • RING | 1 |
| 11 | 07000-15175 | • O-RING (KIT) | 1 |
| 12 | 707-35-91840 | • RING,BACK-UP (KIT) | 1 |
| 13 | 07000-15175 | • O-RING (KIT) | 1 |
| 14 | 707-35-91840 | • RING,BACK-UP (KIT) | 2 |
| 15 | 707-71-32930 | • COLLAR | 1 |
| 16 | 01011-82400 | • BOLT | 12 |
| 17 | 707-88-75410 | • WASHER | 12 |
| 18 | 209-63-77820 | • ROD,PISTON | 1 |
| 19 | 707-76-11130 | • BUSHING | 1 |
| 20 | 07145-00110 | • SEAL,DUST (KIT) | 2 |
| 21 | 707-36-18520 | • PISTON | 1 |
| 22 | 07000-15110 | • O-RING (KIT) | 1 |
| 23 | 07001-05110 | • RING,BACK-UP (KIT) | 2 |
| 24 | 707-44-18920 | • RING | 2 |
| 25 | 707-39-18830 | • RING,WEAR (KIT) | 2 |
| 26 | 707-44-18280 | • RING,PISTON (KIT) | 1 |
| 27 | 707-71-61320 | • PLUNGER | 1 |
| 28 | 01310-01225 | • SCREW | 1 |
| 29 | 209-63-77870 | TUBE | 1 |
| 30 | 209-63-77980 | TUBE | 1 |
| 31 | 07000-13035 | O-RING (KIT) | 2 |
| 32 | 01435-01055 | BOLT | 8 |
| 33 | 07000-13038 | O-RING | 2 |
| 34 | 07378-11210 | HEAD | 2 |
| 35 | 07371-51260 | FLANGE | 4 |
| 36 | 01010-71245 | BOLT | 8 |
| 37 | 01643-31232 | WASHER | 8 |
| 38 | 707-88-21130 | BAND | 1 |
| 39 | 707-88-21140 | BAND | 1 |
| 40 | 707-88-22420 | BRACKET | 1 |
| 41 | 209-63-77990 | BRACKET | 1 |
| 42 | 01010-81240 | BOLT | 8 |
| 43 | 01643-51232 | WASHER | 8 |
| 44 | 07283-23442 | CLIP | 3 |
| 45 | 01599-01011 | NUT | 6 |
| 46 | 01643-31032 | WASHER | 6 |
| 707-99-68650 | SERVICE KIT | 1 |

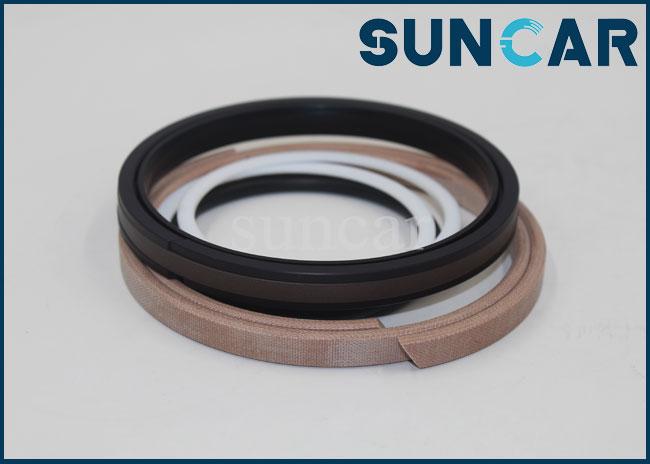

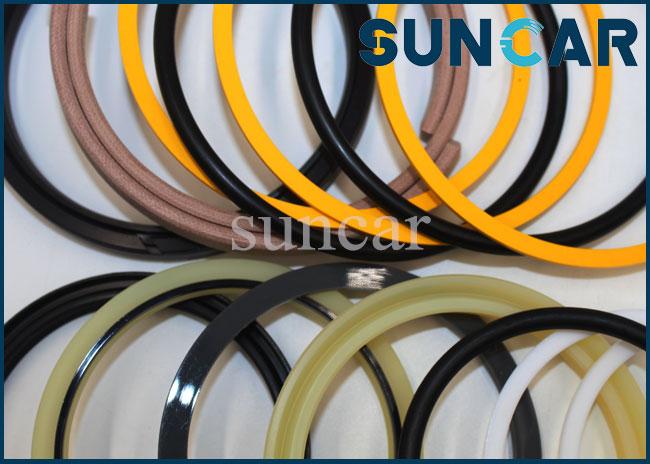

Product Show:
Contact Information:
If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals, seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.
