707-99-27740 7079927740 Arm Cylinder Oil Seal Kit For 2-Piece Boom Model PC75R-2 PW75R-2 Komatsu
707-99-27740 7079927740 Arm Cylinder Oil Seal Kit For 2-Piece Boom Model PC75R-2 PW75R-2 Komatsu
| Product Name | Arm Cylinder Oil Seal Kit |
| Part Number | 707-99-27740, 7079927740 |
| Model | KOMATSU PC75R-2, PC75R-2 PC75R-2HD, PW75R-2 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 60 MM |
| Bore | 95 MM |
Some Policies Regarding Product Ordering:
- Payment Policy:
We accept PayPal, TT, Western Union.
- Shipping Policy:
Usually ships within 3 business days of receiving the order.
- Refund policy:
We allow product replacement, and returned items must be in brand new condition, unused, including original parts and labels. Shipping or any other related charges will be paid by the buyer. We do not accept returns if the item is installed or damaged for some reason.
- Responsibility:
We are only responsible for the parts we sell. If there is any problem with the parts, we can accept returns, refunds or replacements, please understand that we do not compensate you for labor, trailers, repairs, rental costs or any other related costs.
Related Parts:
| Pos. | Part No | Parts Name | Qty |
| 1 | 707-01-0S600 | ARM CYLINDER, ASSY. | 1 |
| 2 | 721-58-60590 | • PISTON ROD | 1 |
| 3 | 707-76-50940 | • BUSHING | 2 |
| 4 | 01010-81465 | • BOLT | 12 |
| 5 | 705-17-04980 | • WASHER | 12 |
| 6 | 01310-00820 | • DOWEL | 1 |
| 7 | 707-27-95220 | • CYLINDER HEAD | 1 |
| 8 | 707-36-95120 | • PISTON | 1 |
| 9 | 707-13-95090 | • CYLINDER | 1 |
| 10 | 04260-00635 | • BALL | 9 |
| 11 | 707-71-91280 | • DOWEL | 1 |
| 12 | 707-71-60100 | • PIN | 1 |
| 13 | 707-71-34010 | • THRUST WASHER | 1 |
| 14 | 707-71-70790 | • BUSHING | 1 |
| 15 | 707-87-14070 | • PLUG | 1 |
| 16 | 07750-01628 | • SPRING | 1 |
| 17 | 707-83-13010 | • PIN | 1 |
| 18 | 07179-12074 | • RING, WEAR | 1 |
| 19 | 707-52-90360 | • PACKING ROD | 1 |
| 20 | 707-75-60110 | • RING, WEAR | 1 |
| 21 | 707-44-95911 | • PACKING ROD | 2 |
| 22 | 707-99-27740 | • KIT, GASKET | 1 |
| 23 | •• GASKET | 1 | |
| 24 | •• RING, WEAR | 1 | |
| 25 | •• O-RING | 1 | |
| 26 | •• GASKET | 4 | |
| 27 | •• O-RING | 1 | |
| 28 | •• GASKET | 2 | |
| 29 | •• GASKET | 1 | |
| 30 | •• GASKET | 1 | |
| 31 | •• RING | 1 | |
| 32 | •• RING, WEAR | 2 | |
| 33 | •• RING | 2 | |
| 34 | •• O-RING | 1 | |
| 35 | •• O-RING | 1 | |
| 36 | 22E-61-12221 | PIPE | 1 |
| 37 | 22E-61-12210 | PIPE | 1 |
| 38 | 02892-03018 | O-RING | 2 |
| 39 | 01252-70825 | SCREW | 8 |
| 40 | 21D-09-73690 | WASHER | 8 |
| 41 | 21D-09-89140 | GREASE NIPPLE | 2 |
Basic Requirements For Sealing Materials:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.

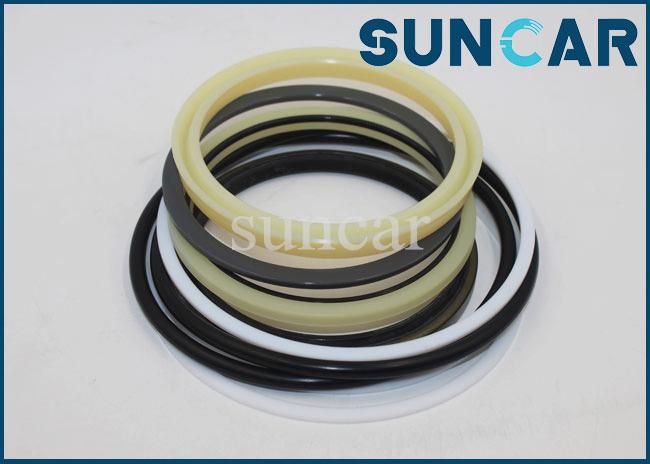

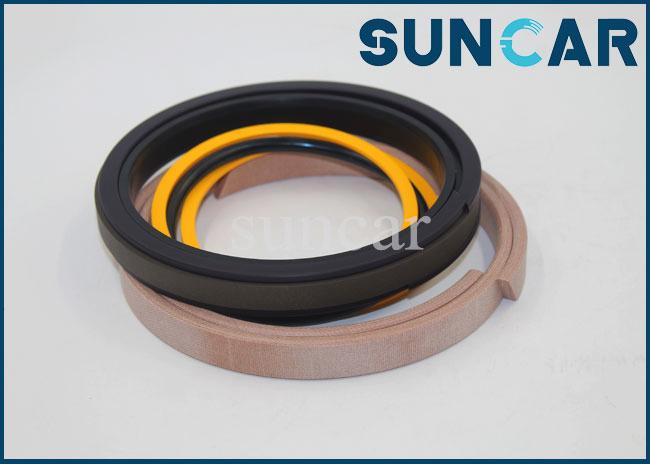

Product Show:
