440-00015AKT Arm Cylinder Seal Kit 44000015AKT Fits SOLAR 450LC-V SOLAR 470LC-V Excavator Doosan

Name: 440-00015AKT Arm Cylinder Seal Kit 44000015AKT Fits SOLAR 450LC-V SOLAR 470LC-V Excavator Doosan
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

440-00015AKT Arm Cylinder Seal Kit 44000015AKT Fits SOLAR 450LC-V SOLAR 470LC-V Excavator Doosan

Product Name	Arm Cylinder Seal Kit
Part Number	440-00015AKT, 44000015AKT
Model	DOOSAN SOLAR 450LC-V, SOLAR 470LC-V, SOLAR 500LC-V
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic seal kit, excavator service kits
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance/ wear resistance
AppliC.A.Tion	Arm

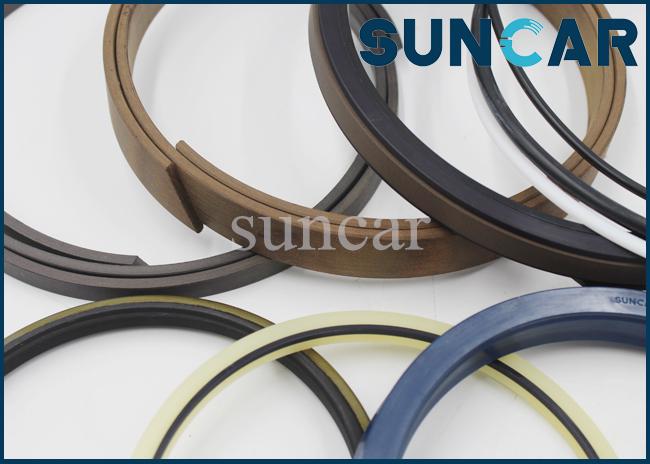

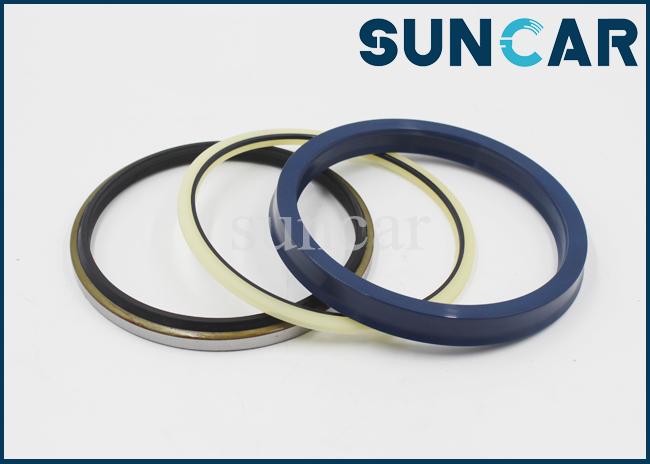

Product Show:

Packing And Shipping:

Usually, cartoon packing is for goods below 30KG.
Plywood box packing is for over 30KG.
Packing: Neutral packing, Suncar packing, and Original packing.
Ships within 3 working days after placing an order and receiving payment
Shipping: By international express( DHL, UPS, TNT, FEDEX, EMS, etc.)
By air, shipping time is about a week.
By sea, shipping time is about 20-40 days.

Product Description:

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Arm cylinder is the top one, and it's usually be called as top cylinder;
Bucket cylinder is the one that connects and controls the bucket.

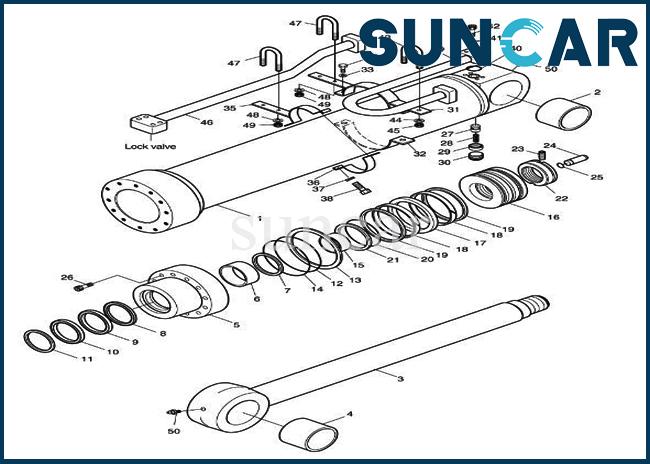

Related Part:

Pos.	Part No	Parts name	Qty
*.	440-00015AKT	SEAL KIT	[1]
-.	440-00088	CYLINDER;ARM	[1]
1	53A554-0	TUBE ASSEMBLY	[1]
10	E6020370	WIPER;DUST	[1]
11	00M465-0	RING;RETAINING	[1]
12	E6311921	O-RING	[1]
13	04A358-0	RING;BACK-UP	[1]
14	E6490093	O-RING	[1]
15	00C318-0	RING;CUSHION	[1]
16	53A561-0	PISTON	[1]
17	E5130440	SEAL;SLIPPER	[1]
18	00Z115-0	RING;WEAR	[2]
19	00R107-0	RING;SLYD	[2]
2	00B109-0	BUSH	[1]
20	E6311561	O-RING	[1]
21	04A359-0	RING;BACK-UP	[2]
22	04A340-0	NUT;PISTON	[1]
23	E1330544	SCREW;SET	[1]
24	03A626-1	PLUNGER;CUSHION	[1]
25	03A627-0	RING;STOP	[1]
26	E0503289	BOLT;SOCKET	[12]
27	03A727-0	VALVE;CHECK	[1]
28	03A729-0	SPRING	[1]
29	03A728-0	SUPPORT;SPRING	[1]
3	53A555-0	ROD ASSEMBLY	[1]
30	E1500030	PLUG	[1]
31	53A557-0	PIPE BAND ASSEMBLY-A	[1]
32	00P383-1	BAND;PIPE	[1]
33	E3110112	WASHER;SPRING	[2]
34	E0020963	BOLT;HEX.	[2]
35	53A562-0	PIPE BAND ASSEMBLY-B	[1]
36	00P383-1	BAND;PIPE	[1]
37	E3110112	WASHER;SPRING	[2]
38	E0020963	BOLT;HEX.	[2]
39	53A559-0	PIPE ASSEMBLY-H	[1]
4	00B109-0	BUSH	[1]
40	E6300881	O-RING	[1]
41	E3110122	WASHER;SPRING	[4]
42	E0501846	BOLT;SOCKET	[4]
43	00U211-0	U-BOLT	[1]
44	E3110112	WASHER;SPRING	[2]
45	E2021042	NUT;HEX.	[2]
46	140-00167	PIPE ASSEMBLY-R	[1]
47	00U211-0	U-BOLT	[2]
48	E3110112	WASHER;SPRING	[4]
49	E2021042	NUT;HEX.	[4]
5	53A556-0	COVER;ROD	[1]
50	E8841022	NIPPLE;GREASE	[2]
6	E8412904	BUSH;DU	[1]
7	00M419-0	RING;RETAINING	[1]
8	E5500380	SEAL;BUFFER	[1]
9	E5303880	PACKING;U	[1]
