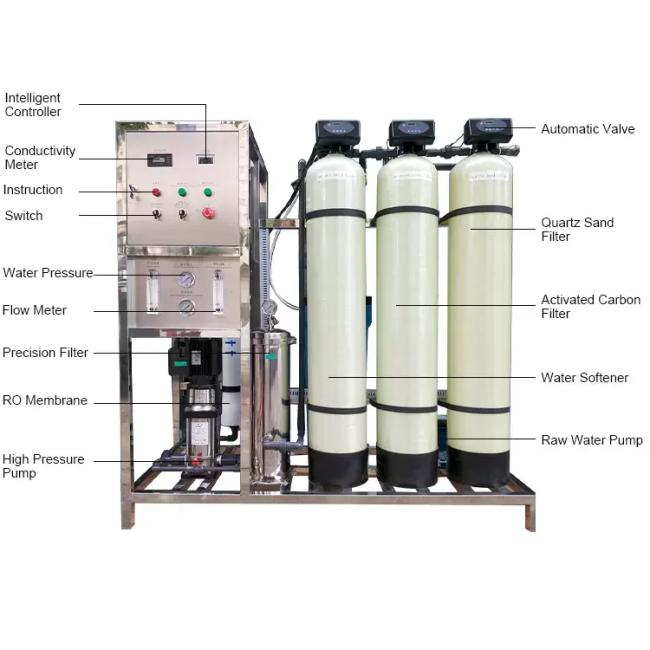

Brackish Water Reverse Osmosis System PRO-FD40160: Efficient Solution for Clean Water Production

Key Features & Technical Specifications

• Output Capacity: 1 TPH (6,400 GPD), suitable for mid-scale water needs.
• Membrane Configuration: Single-pass 4"x4 membranes (optional Filmtec/Hyranautics), ensuring high rejection rates for salts and impurities.
• Construction: SS304 skid-mount frame for corrosion resistance and easy installation.
• Power & Voltage: 2.1kW, 380-415V/50Hz (custom voltages available).
• Pretreatment System: Dual FRP tanks with SF-ACF (sand filter - activated carbon filter) process, removing suspended solids and organic matter.
• Control & Monitoring: IC control unit, TDS indicator, pressure gauges, flow meters, and LP/HP switches for safe, automated operation.
• Pipework: uPVC water pipes for chemical resistance and long-term durability.

Process Flow & Efficiency

1. Pretreatment: Feed water first passes through sand filters to remove particulates, followed by activated carbon filters to adsorb organic compounds and chlorine, protecting the RO membrane from damage.
2. Reverse Osmosis: The core stage uses high-pressure pumps to drive water through the RO membrane, rejecting up to 99% of dissolved solids, salts, and contaminants.
3. Control & Monitoring: Real-time TDS monitoring and pressure switches ensure optimal performance, while operational indicators simplify maintenance.

Applications & Benefits

• Industrial Use: Boiler feed water, cooling tower make-up, and process water in manufacturing.
• Municipal & Community Systems: Small-scale drinking water supply for remote areas or islands.
• Commercial Settings: Hotels, resorts, and hospitals requiring consistent water quality.

• Compact skid-mount design reduces installation time and space requirements.
• High-quality SS304 and uPVC materials ensure longevity and low maintenance.
• Flexible voltage options and modular components allow customization for global markets.
• Compliance with feed water TDS<2000ppm makes it suitable for a wide range of brackish water sources.
