YJV22 N2XRY Galvanized Steel Tape Armoured Electrical Cable STA 4 Core 0.6/1KV 4*50mm2
0.6/1 KV 4*50 Mm2 XLPE Insulated Galvanized Steel Tapes Armoured STA 4 Core Copper Conductor Electrical Cable
▼ Application:
Armoured cables for fixed installations,suitable for indoor and outdoor installation, in air and ground
- Laid on walls, in cable ducts, on cable trays.
- These cables are not designed to be laid up in wet environments
- Maximum temperature rating of the conductor: +90 °C
- Suitable for temperature down to -25 °C.

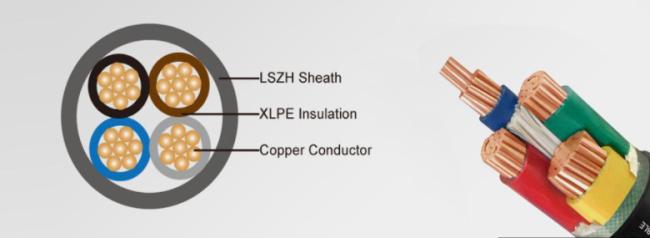

▼ Construction:
| STANDARDS International: IEC 60502-1 National:GB/ T 12706.1-2008 CONSTRUCTION: 1. CONDUCTOR – Bare copper conductor, Class 2 to IEC 60228 2. INSULATION – XLPE Compound 3. FILLER – PP filler 4. INNER SHEATH – PVC Compound 5. ARMOUR TYPE – Galvanized Double Steel Tape. 6. OUTER SHEATH : – PVC Compound Sheath colour : – Black *Note: when required for a particular application, other colors are available. |
|
▼ Model
VV:copper core PVC insulated PVC sheathed power cable
VLV:Aluminum core PVC insulated PVC sheathed power cable
VV22:cooper core PVC insulated,steel tape armored (STA),PVC sheathed power cable
VLV22:Aluminum core PVC insulated,steel tape armored (STA),PVC sheathed power cable
YJV: copper core XLPE insulated PVC sheathed power cable
YJLV: Aluminum core XLPE insulated PVC sheathed power cable
YJV22: copper core XLPE insulated PVC sheathed steel tape armored (STA) power cable
YJLV22: Aluminum core XLPE insulated PVC sheathed steel tape armored (STA) power cable
V means PVC,L means aluminum,22 means steel tape armored(STA)
Shape: Circular Compacted or shaped Stranded Conductor (Class 2)
Insulation:VV/VV22 PVC
YJV/YJV22 XLPE (cross-linked polyethylene) rated at 90℃
▼ Advantage:
Compressed Conductor easy for installation, UV - resistant , Exellent in physical protection,Flame retardant
▼ Packing&Delivery:
| Packaging details : | Delivery : | |
 |
 |
 |
| Steel Wooden Drums | Cable Drum In container | shipped in 15 days after payment |
▼Technology R&D
Finecredit Group set up a R&D Center in 2013. We insist on the combination of production, teaching and research and lead an application research, marketing operation and industrialization road. Through attracting and training professional and excellent talents, Finecredit has built up his high-level scientific and technological innovation team and realized the healthy development of talent team and scientific and technological innovation. Today, Finecredit Group has specialized technical personnel with senior professional titles more than 35% of the employees, high-level laboratories, and more than 50 advanced testing equipment.
