single/Multi core copper wire mineral insulated copper clad sheathed mi insulation electrical power cable prices

Model: RTTW

Cores: 1~5

Rated voltage: 600/1000V

Product standards: Q/320481SS443

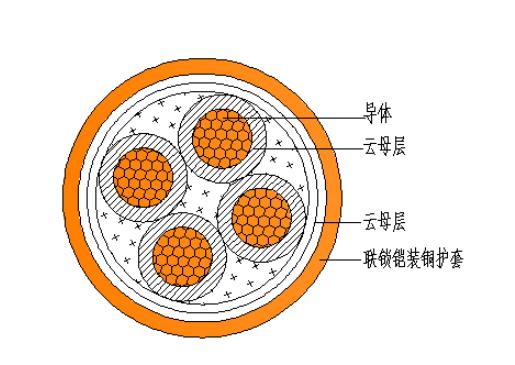

Construction: Annealed copper conductor/mica tape insulation/copper sheath

Product description: Inorganic mineral insulated metallic sheathed flexible fire proof cable.

Applicable scope: Emergency system of various building fire extinguishing system, power transmission and distribution system of public security area, power transmission and distribution system of high temperature area, etc.

Advantage:

1. Fire resistance performance: fire resistance standards can pass BS6387 assessment: simple fire test, fire and water resistance test and fire impact test. In terms of fire resistance, it fully meets the assessment standards of BTTZ.

2. Production range: The production range is wide, and the length can be according to the needs of users, and the whole unit can be delivered without joints.
3. Long life: It has good anti-rodent, anti-termite, and anti-radiation functions, which can ensure the stability, long life and durability of the cable.
4. Metal sheath: The metal sheath of the cable has high corrosion resistance. For most devices, it does not need to take additional protective measures; even the metal sheath of the cable is prone to chemical corrosion or serious industrial pollution Because the outermost layer of the cable is protected by a plastic outer sheath, it is still safe.
5. Mechanical strength: The cable is sturdy and durable. It can still work normally when the diameter of the cable is deformed by one third. Even if it is subjected to severe mechanical damage, its electrical performance will not be damaged.
6. Product structure: The conductor is made of stranded copper wires, the insulation is mechanically wrapped with high temperature resistant synthetic mica tape, the outer insulation layer is densely filled with alkali-free glass fiber, and the sheath is longitudinally wrapped with copper tape and welded into a copper tube. Continuous rolling and corrugated forming.

▼ Production equipment:

▼ Delivery Port :

Port of Shenzhen	Port of Hongkong	Port of Guangzhou
