YJV22 3x240mm2 XLPE MV Steel Tape Armoured Cable Medium Voltage
YJV22 Medium Voltage Power Cables 8.7/15kV Steel Tape Armoured 3x240mm² XLPE MV Cable
It has excellent heat resistance and good insulation properties. Using XLPE material, the hardness, rigidity, wear resistance and impact resistance are improved, and it has strong acid and alkali resistance and oil resistance.

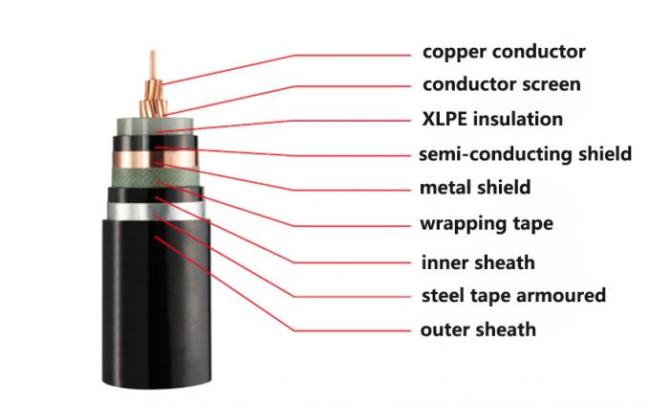

Construction
| Conductor | Plain annealed copper wire,solid, Class 1,strand, Class 2, meets to GB/T 3956, IEC 60228,BS 6360. |
| Conductor Screen | Semi-conductor (MV only) |
| Insulation | XLPE |
| Insulation Screen | Semi-conductor (MV only) |
| Metallic Screen | Copper tape |
| Filler | PP Yarn, or Paper |
| Separator | Binding tape |
| Inner sheath | Extruded PVC (MV only) |
| Armouring | Steel Tape Armoured (STA) |
| Sheath | PVC(LSZH) |
Characteristics
| Rated voltage(KV) | 3.6/6 | 6/6 | 6/10 | 8.7/10 | 8.7/15 | 12/15 | 12/20 | 18/20 | 18/30 | 21/35 | 26/35 | |
| Core Number | 1 core, 3 core | |||||||||||
|
Cross-section mm2 |
1C | 25~800 | 35~800 | |||||||||
| 3C | 25~400 | 35~400 | ||||||||||
Application
Cross-linked polyethylene insulated cables due to their excellent electrical insulation properties and high temperature resistance, cross-linked cables below 10kV are widely used to connect 10kV cable lines in the ring network, such as electric power, construction, mining, metallurgy, petroleum, chemical, transportation, etc.
Standards&Certificates: IEC 60502-2
