300mm2 Armoured Xlpe Cable , YJV22 8.7/15KV N2XRY STA 3 Core Insulated Power Cable

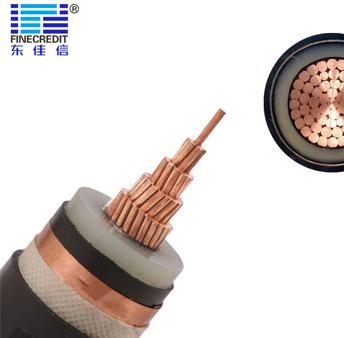

8.7/15 KV XLPE Insulated Single Core Medium Voltage Power Cable To IEC 60502 3×300
|
|
1. Core Conductor: annealed copper (stranded core) 2. Popular sizes: 1,3core x 25~630mm² 3. Cable conductor: stranded annealed copper 4. Insulation: XLPE 5. Jacket:PVC 6. Steel Tape or Steel Wire Armord 6. Other specs: a)Temperature rating: -25C up to +90℃ b). Fire performance: IEC 60332-1 c). Approval: QS in China d). Voltage suitable: 6~30kV |
Advantages |
|
|
Heat resistance: XLPE with a three-dimensional network structure has excellent heat resistance. It will not decompose and carbonize below 200℃, the long-term working temperature can reach 90℃, and the thermal life can reach 40 years; |
Insulation performance: XLPE maintains the original good insulation properties of PE, and the insulation resistance is further increased. The dielectric loss tangent value is very small, and it is not greatly affected by temperature. |
8.7/15KV XLPE Insulated, Copper conductor, single core, screened, PVC sheathed
| No.cores x cross-sec. |
Insulation thickness |
Inner Sheath thickness |
Sheath thickness |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3 x 35 | 2.5 | 1.3 | 2.3 | 43.5 | 2993 | 144 | 181 |
| 3 x 50 | 2.5 | 1.3 | 2.4 | 46.5 | 3601 | 172 | 215 |
| 3 x 70 | 2.5 | 1.4 | 2.5 | 49.3 | 4368 | 213 | 263 |
| 3 x 95 | 2.5 | 1.4 | 2.6 | 54.3 | 5348 | 261 | 315 |
| 3 x 120 | 2.5 | 1.5 | 2.8 | 57.9 | 6303 | 301 | 358 |
| 3 x 150 | 2.5 | 1.6 | 2.9 | 61.7 | 7405 | 341 | 402 |
| 3 x 185 | 2.5 | 1.6 | 3.0 | 65.4 | 8646 | 392 | 456 |
| 3 x 240 | 2.6 | 1.7 | 3.2 | 70.7 | 10573 | 459 | 527 |
| 3 x 300 | 2.8 | 1.8 | 3.4 | 77.3 | 12779 | 532 | 599 |
| 3 x 400 | 3.0 | 2.0 | 3.7 | 88.1 | 17225 | 624 | 685 |
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
