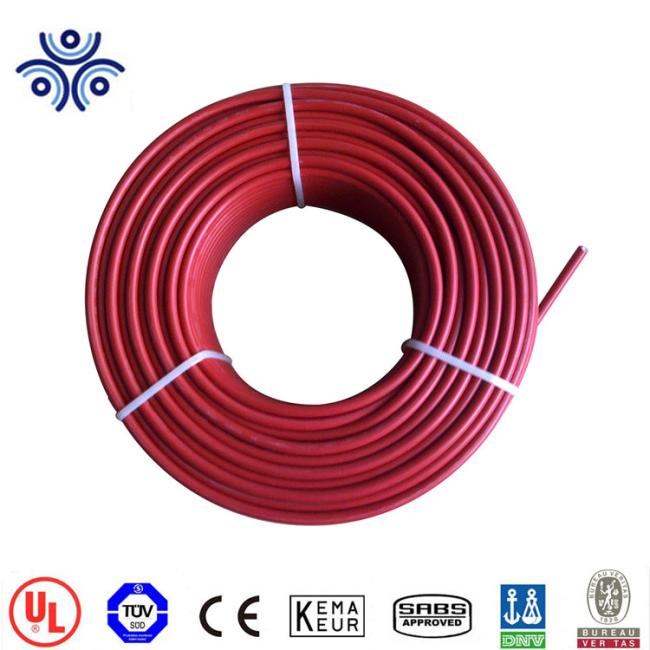

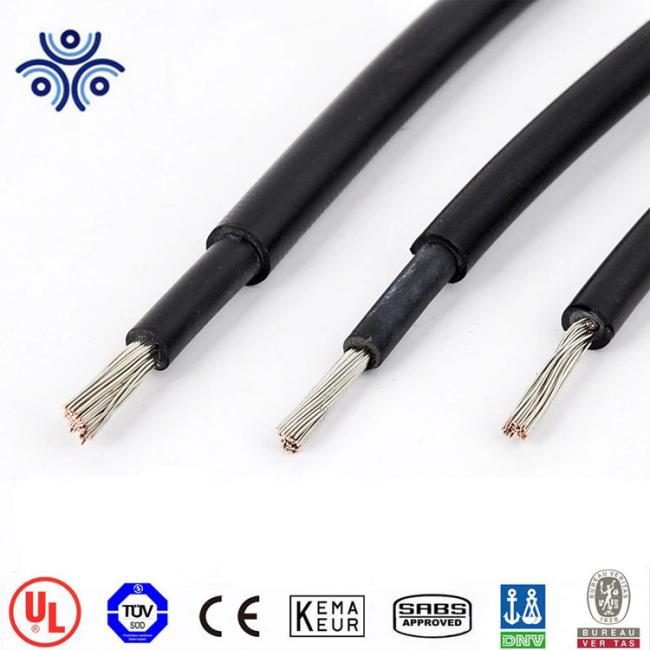

Quality DJX cable 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable with TUV Certification
Product Description
UL approved photovoltaic PV cable, TUV approvd 2PfG 1169 PV1-F solar cable 4mm2 Solar PV Cable, 12AWG PV Cable for solar panel
Solar Cable
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment

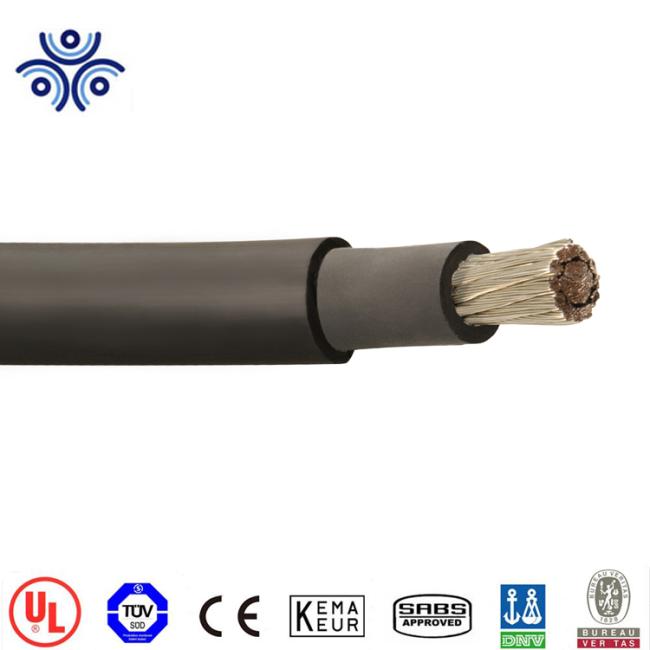

Construction
Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502
|
Construction
|
Conductor Construction
|
Conductor ø
|
Outer ø
|
Resistance Max.
|
Current Carring Capacity
|
|
n×mm²
|
n/m
|
mm
|
mm
|
Ω/Km
|
A
|
|
1×1.5
|
30/0.25
|
1.58
|
4.9
|
13.3
|
30
|
|
1×2.5
|
50/0.25
|
2.02
|
5.45
|
7.98
|
41
|
|
1×4.0
|
56/0.3
|
2.30
|
6.1
|
4.75
|
55
|
|
1×6.0
|
84/0.30
|
3.42
|
7.2
|
3.39
|
70
|
|
1×10.0
|
142/0.30
|
4.56
|
9
|
1.95
|
98
|
|
1×16.0
|
228/0.30
|
5.60
|
10.2
|
1.24
|
132
|
|
1×25.0
|
361/0.30
|
6.95
|
12
|
0.795
|
176
|
|
1×35.0
|
525/0.30
|
8.74
|
13.8
|
0.565
|
218
|
|
1×50.0
|
720/0.30
|
9.20
|
14.8
|
0.393
|
280
|
|
1×70.0
|
988/0.30
|
11.00
|
16.9
|
0.277
|
350
|
|
1×95.0
|
1349/0.30
|
12.50
|
18.7
|
0.21
|
410
|
|
1×120
|
1691/0.30
|
14.20
|
20.7
|
0.164
|
480
|
Product Package
Packging details
 |
 |
 |
|
– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) |
–Electrical wire ready to delivery |

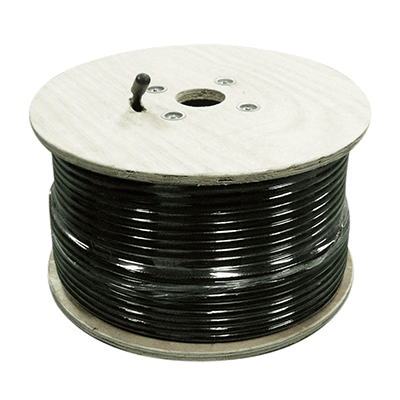

–Reel / Drum (as of 35 mm2) –Other package as required |
▼ Advantage:
Compressed Conductor easy for installation, UV - resistant , total protection for the cable
▼ Standards&Certificates:
IEC 60502-1 TUV
Keywords: #Cable #Wire #Wireandcable #Electricalcable #Flexiblecable #XLPEcable #LANcable #Controlcable #LSZHcable #DJXcable #Cablemanufacturer #Cablefactory #Cablesupplier #Cableprovider #Cablewholesale #Rubbercable #Powercable #Solarcable #Mineralinsulatedcable #Armouredcable #Armoredcable

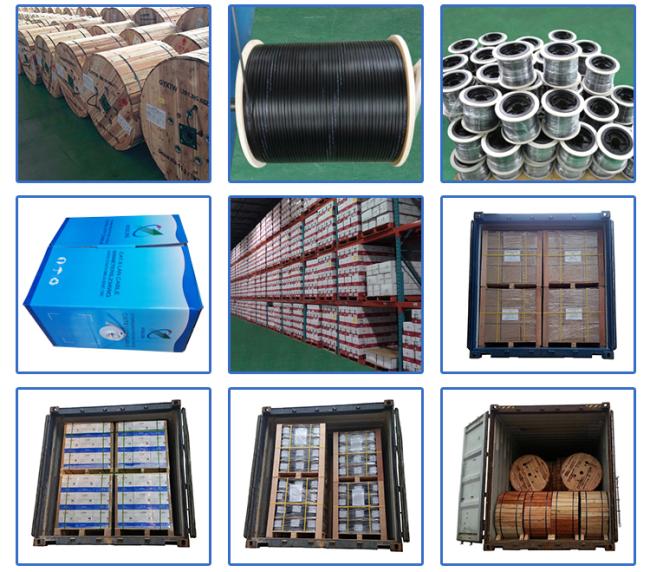

▼ Packing&Delivery:
| Packaging details : | Delivery : | |
 |
 |
 |
| Steel Wooden Drums | Cable Drum In container | shipped in 15 days after payment |
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |

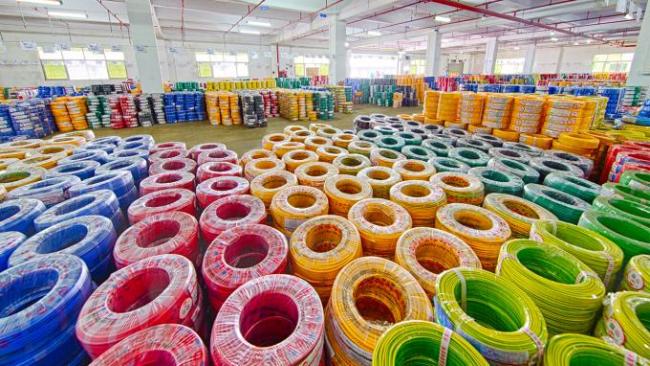

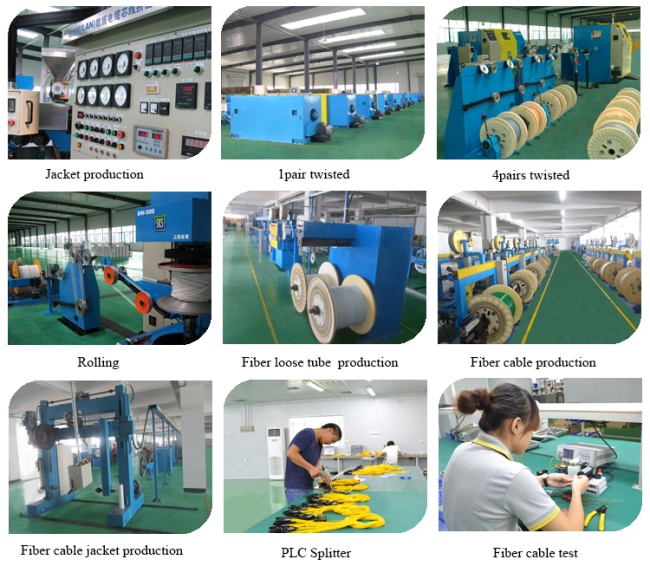

| Workshop and Quality Test |
| Package and Delivery |
| Payment and Shipping |
Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
By express for trial order.
By sea for standard order.
▼ Company information:
Annual revenue is about 500 million US dollars.
35years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 100,000 square meters.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
