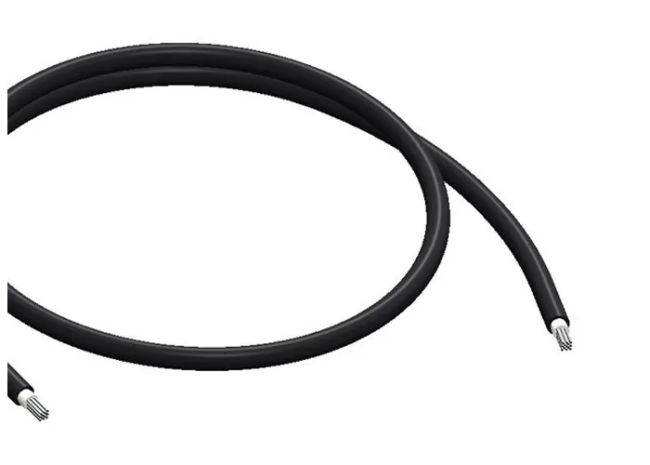

0.6KV-1KV Solar PV Photovoltaic Cable Twin Core For Power Station
Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Construction
1. Core Conductor: Tinned annealed copper (stranded core)
2. Popular sizes: 2core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm²
3. Cable conductor: stranded tinned annealed copper
4. Insulation: electron-beam cross-linked Polyolefin(XLPE)
5. Jacket:XLPE/ PE (black, red)
6. Other specs:
a) Temperature rating: -40C up to +120C
b). Fire performance: IEC 60332-1, UL1581 VW-1
c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²
d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e). Voltage suitable: 600-1000V
Advantage
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
Market future
Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing
Technical parameter
| Section Area (mm2) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
External Diameter (mm) |
Current Carring Capacity (A) |
| 2x1.5 | 0.7 | 0.8 | 4.9x10 | 30 |
| 2x2.5 | 0.7 | 0.8 | 5.5x11.5 | 41 |
| 2x4 | 0.7 | 0.8 | 6.1x12.5 | 55 |
| 2x6 | 0.8 | 0.9 | 7.2x14.5 | 70 |
| 2x10 | 0.9 | 1.1 | 9.0x18.5 | 98 |
| 2x16 | 1.1 | 1.1 | 10.2x20.5 | 132 |
Product Package
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼Ordering Options:
For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.
