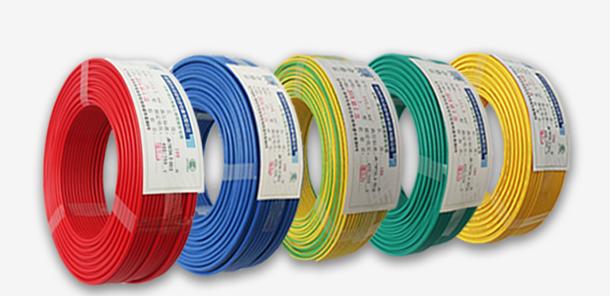

1.5sq 2.5sq 4sq Industrial Flexible Cable For Fixed Wiring H05V-K H07V-K Single Core
1.5sq mm 2.5sq mm Single Core Electrical Cable Wire For Fixed Wiring H05V-K H07V-K
▼ Application:
This product is suitable for fixed wiring (laying) of power equipment with AC rated voltage of 450/750V and below. It has a wide range of uses in low-voltage power lines, daily electrical, instrumentation and telecommunications equipment.
▼ Constraction:
| Model Number | H07V-K/RV |
| Popular sizes | single core 1.5~240mm² |
| Conductor | Flexible conductor |
| Insulation&Jacket | PVC Insulation Cable |
| Temperature rating | 70℃ |
| Insulation: | polyvinyl chloride (PVC) |
| Standards | Black, Red, Orange, Blue, Yellow, Yellow-green |
| Application | EN 50525-2-31:2011 ; IEC 60227 |
▼ Advantage:
Flexible,easy to install,Flame retardant and environmentally friendly.
▼ Technical parameters:
| Cross section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1.5 | 30/0.24 | 0.7 | 3.0 | 13.3 |
| 2.5 | 49/0.24 | 0.8 | 3.6 | 8.0 |
| 4 | 56/0.29 | 0.8 | 4.2 | 5.0 |
| 6 | 84/0.29 | 0.8 | 4.95 | 3.3 |
| 10 | 7×11/0.39 | 1 | 6.4 | 1.91 |
| 16 | 7×17/0.39 | 1 | 7.4 | 1.21 |
| 25 | 7×27/0.39 | 1.2 | 9.3 | 0.78 |
| 35 | 14×19/0.39 | 1.2 | 10.5 | 0.554 |
| 50 | 14×27/0.39 | 1.4 | 12.8 | 0.368 |
| 70 | 17×24/0.45 | 1.4 | 14.4 | 0.272 |
| 95 | 23×24/0.45 | 1.6 | 16.4 | 0.206 |
| 120 | 29×24/0.45 | 1.6 | 18.2 | 0.161 |
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group, including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory, High Frequency Laboratory etc. Equipped with over 50 advanced equipment and technologies.
| ▼ Packing&Delivery: |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
