5mm2 2.5mm2 4mm2 6mm2 10mm2 copper conductor pvc insulation H07V-U H07V-R H07V-K Cable 450/750V

1. Application

The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical

appliances like lighting, electronic equipment, instrument and communication equipment with rated

voltage 450/750V or less.

H07V-R/H07V-U/BV  Cable CONSTRUCTION

Conductor	Bare Copper
Insulation	PVC
Warranty	450/750V
Size	1.5~630mm²



2. Temperature range

450/750V.Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.

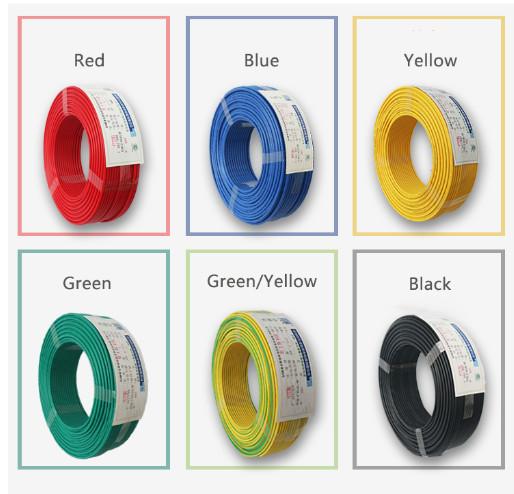

3. Colors available:

H07V-R/H07V-U / 60227 IEC 01(BV) 450 / 750V -Single Cores, fine wire stranded

roduct type	Conductor structure(mm)	Insulation thickness(mm)	Sheath thickness(mm)	Approx. cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
H07V-U	1.5	1/1.37	0.7	3.0±0.2	12.1
H07V-U	2.5	1/1.75	0.8	3.7±0.2	7.41
H07V-U	4	1/2.21	0.8	4.2±0.2	4.61
H07V-U	6	1/2.70	0.8	4.7±0.2	3.08
H07V-R	1.5	7/0.52	0.7	2.8±0.2	12.1
H07V-R	2.5	7/0.67	0.8	3.4±0.2	7.41
H07V-R	4	7/0.84	0.8	3.9±0.2	4.61
H07V-R	6	7/1.03	0.8	4.3±0.2	3.08
H07V-R	10	7/1.34	1.0	5.8±0.2	1.83
H07V-R	16	7/1.67	1.0	6.8±0.2	1.15
H07V-R	25	7/2.12	1.2	8.4±0.2	0.727
H07V-R	35	7/2.49	1.2	9.4±0.2	0.524
H07V-R	50	19/1.77	1.4	11.6±0.2	0.387
H07V-R	70	19/2.12	1.4	13.3±0.3	0.268
H07V-R	95	19/2.49	1.6	15.6±0.3	0.193
H07V-R	120	37/2.00	1.6	17.1±0.3	0.153
H07V-R	150	37/2.23	1.8	19.1±0.3	0.124
H07V-R	185	37/2.49	2.0	21.3±0.3	0.0991
H07V-R	240	61/2.22	2.2	24.2±0.5	0.0754
H07V-R	300	61/2.49	2.4	27.0±0.5	0.0601
H07V-R	400	61/2.83	2.6	30.5±0.5	0.0470
H07V-R	500	61/3.20	2.8	34.2±0.5	0.0366
H07V-R	630	61/3.63	2.8	38.0±0.5	0.0283



▼ Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

If this all seems a little too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
