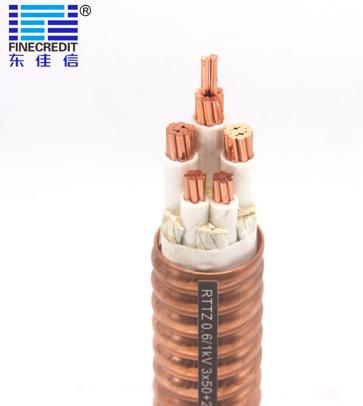

1-5C Mineral Insulated Cable DJX Electrical Cable Copper Metallic Sheath 3×10+2×6 CCC Approved
RTTZ Fire Retardant Cable Corrugated Copper Metallic Sheath CCC Approved DJX Mineral Insulated Cable with MgO insulated
The design, construction and testing are compliant with international standard IEC60502 and testing standard EN 50200 (PH-90),with standing temperatures of 840 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.
This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 105°C Short-Circuit Temperature 250°C
 |
Conductor | annealed copper (stranded core) |
| Insulation | Mica Tape Overlap | |
| Jacket | Wave form copper | |
| Temperature rating | -25C up to +90℃ | |
| Fire performance | IEC 60332-1 | |
| Certificates | GB/T 34926-2017 |
| Service Temperature | 90°C |
| Emergency Overload Temperature | 105°C |
| Short-Circuit Temperature | 250°C |
| Laying Temperature | should not be lower than 0°C |
| Minimum bending radius when laying | Single core: r = 6 x cable outer diameter |
| Sheath colour | The standard color is orange, other colors are available. |
Keywords: #Cable #Wire #Wireandcable #Electricalcable #Flexiblecable #XLPEcable #LANcable #Controlcable #LSZHcable #DJXcable #Cablemanufacturer #Cablefactory #Cablesupplier #Cableprovider #Cablewholesale #Rubbercable #Powercable #Solarcable #Mineralinsulatedcable #Armouredcable #Armoredcable
▼ Company information:
35 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 100,000 square meters.
10,000+ Major projects cable supplier.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼Ordering Options:
For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.
