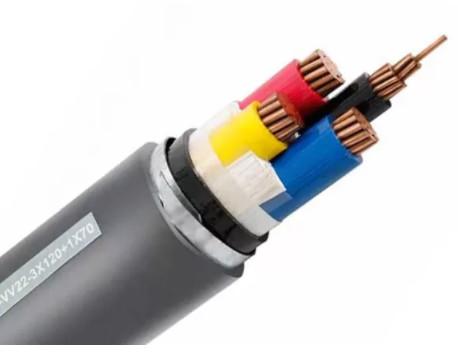

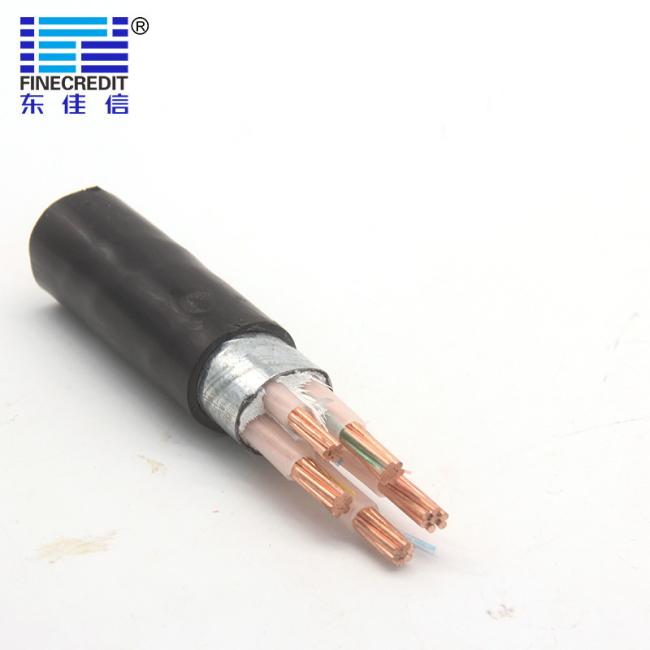

High Quality Armored Cable 1.5-630sqmm Galvanized Steel Tapes Armoured Electrical Cable DJX Electrical Cable of ZC-YJV22

▼High Quality ZC-YJV22 0.6/1KV CU/XLPE/PVC Electrical Power Cable DJX Electrical Cable with Armoured from Top 10 China manufacturer of Cable

Constructions

1. Core Conductor: annealed copper (stranded core)

2. Popular sizes: 2~5 core x 1.5~630mm²

3. Cable conductor: stranded annealed copper

4. Insulation: XLPE

5. Armored : Double Steal Tape

5. Jacket:PVC

6. Other specs:

a) Temperature rating: -25C up to +90℃

b). Fire performance: IEC 60332-1

c). Approval: QS in China

d). Voltage suitable: 0.6/1kV

Advantage

Armored cables are generally fixedly laid power cables. Generally speaking, they are fixed in one place and basically do not move. The power line transmits electric energy.
In addition to the above, the purpose of adding the armor layer to the cable can also enhance mechanical protection such as tensile strength and compressive strength to extend the service life.
The armor has a certain degree of resistance to external forces, and it can also prevent rats from biting, and will not cause power transmission problems through the armor. The bending radius of the armor should be large, and the armor layer can be grounded to protect the cable.

Application

The armored cable mechanical protection layer can be added to the cable of any structure to increase the mechanical strength of the cable and improve the corrosion resistance. It is a wire and cable designed for areas that are prone to mechanical damage and extremely susceptible to erosion. It can be laid in any way, and is more suitable for direct burial laying in rocky areas.

▼ Production equipment:

Keywords: #Cable #Wire #Wireandcable #Electricalcable #Flexiblecable #XLPEcable #LANcable #Controlcable #LSZHcable #DJXcable #Cablemanufacturer #Cablefactory #Cablesupplier #Cableprovider #Cablewholesale #Rubbercable #Powercable #Solarcable #Qualitycable

▼ CNAS Labortory

3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,

including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,

High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
