2-5 Stranded Bare Copper Conductors Extruded PVC Jacket Cable 0.75-2.5mm2
60227 IEC 53 (RVV) Ordinary PVC Extruded Jacket Cord 2-5 Conductors 0.75-2.5mm2
▼ Application:
The cables are intended for the connection of domestic appliances to the fixed supply.

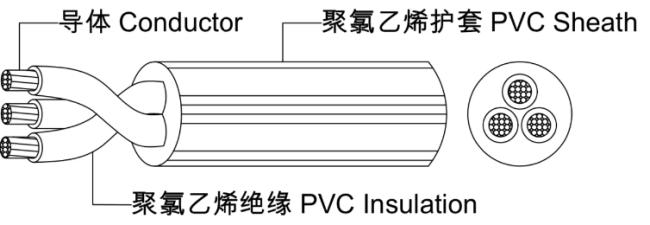

▼ Construction:
| Core Conductor | Stranded bare copper |
| Popular sizes | 2~5 core × 0.75~2.5mm² |
| Cable conductor | stranded annealed copper |
| Insulation | PVC |
| Jacket | PVC |
| Temperature rating | -25C up to +70℃ |
| Voltage suitable | 300/500V |
| Fire performance | IEC 60332-1 |
| Approval | VDE CE CB CCC |
▼ Standards&Certificates:
EN 50525-2-11:2011 & IEC 60227-5 GB/T 5023.5-2008
▼ Technical parameters:
2 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
▼ Delivery Port :
 |
 |
 |
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
