Electronic IP65 200*120*75mm Wall Mount Plastic Enclosure
200*120*75mm IP65 Waterproof Housing Outdoor plastic box for electronic project wholesale
Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screws
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime
Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better.
Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency
Specifications
1, Model:200A-23
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:200*120*75mm
6, Assembly screws included.
7, Multi-directional mounting feet

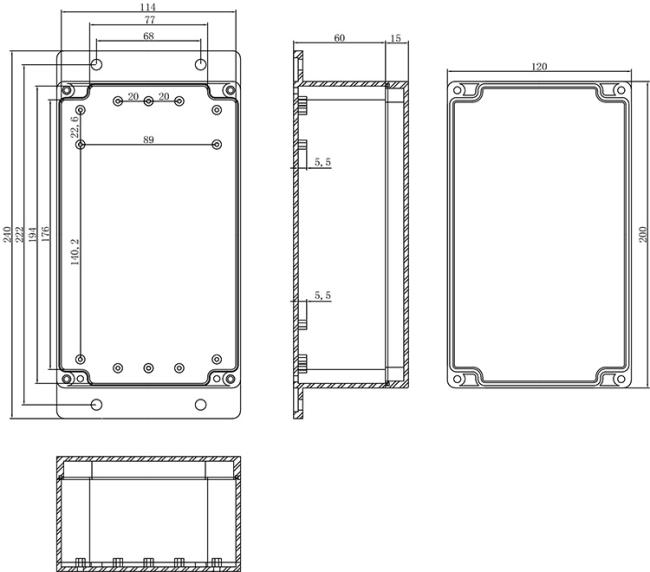

Detailed pictures
More sizes for wall mount plastic enclosure with clear lid
| P.N | Model | Size |
| 63A-23 | 63A-23 | 63*58*35 |
| 83A-23 | 83A-23 | 83*58*33 |
| 100C-23 | 100C-23 | 100*68*40 |
| 100A-23 | 100A-23 | 100*68*50 |
| 115B-23 | 115B-23 | 115*85*35 |
| 115C-23 | 115C-23 | 115*90*55 |
| 115A-23 | 115A-23 | 115*90*68 |
| 120B-23 | 120B-23 | 120*81*65 |
| 158C-23 | 158C-23 | 158*90*46 |
| 158D-23 | 158D-23 | 158*90*64 |
| 160E-23 | 160E-23 | 160*160*90 |
| 192A-23 | 192A-23 | 192*188*70 |
| 200B-23 | 200B-23 | 200*120*75 |
| 230A-23 | 230A-23 | 230*150*87 |
More Types of Plastic Waterproof box
Opaque lid waterproof box
Clear cover waterproof box
Wall mount waterproof box
Clear cover wall mount waterproof box
Custom Services
1, Change Color, Materail to PC or flame retardant
2, Drill holes
3, Silk Screen
4, Install terminal block
5, Connecting cable gland
6, Install metal/plastic wall mount
7, Developing new moulds
Usage examples of the waterproof plastic box
About us
AnBox Electric Co,. Ltd, specializing in design, production and sale various of equipment cases, waterproof boxes, aluminum enclosures, PCB housing, junction boxes, terminal boxes, custom enclosures. etc, our boxes are widely used in automotive, posts and telecommunications, communications, construction, electronic, coal, aerospace, defense, surveillance systems, medical equipment, instruments and meters, LED displays, cable TV ,etc.
