XM35/1000-U Filter Press Concrete Recycle System Batching Plant 495L 35m2
XM35/1000-U Filter Press Concrete Recycle System Batching Plant
Concrete Reclaimer

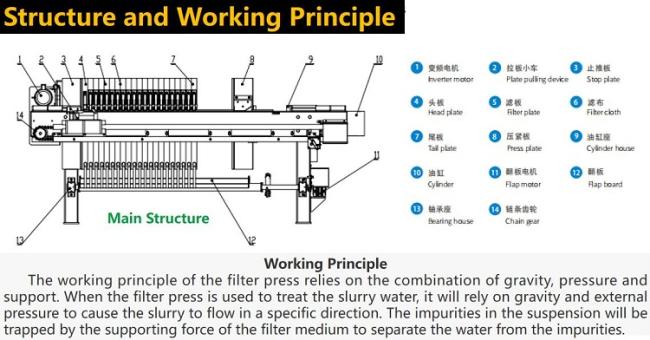

Working Principle The working principle of the filter press relies on the combination of gravity, pressure and support. When the filter press is used to treat the slurry water, it will rely on gravity and external pressure to cause the slurry to flow in a specific direction. The impurities in the suspension will be trapped by the supporting force of the filter medium to separate the water from the impurities.
|
XM35/1000-U |
|
|
Filter Area(m2 ) |
35 |
|
Chamber Volume(L) |
495 |
|
No. of Plate(pcs) |
21 |
|
Plate Size(mm) |
1000*1000mm |
|
Thickness of plate(mm) |
30 |
|
Filter Pressure(MPa) |
≤1.6 |
|
Overall Size L*W*H(mm) |
3560*1550*1450 |
