Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
15~20 days
Brand:
Shenglin
Product Description
Copper Tube And Aluminum Fin Codnenser For Air Conditioner
Feature:
1. Widely used in air conditioning industry, refrigeration industry, cold room and other cooling system.
2. Pitch of fins can be adjusted between 1.8—5.8mm.
3. We can supply products as per customized samples or drawing
4. Did gas examination under 3.0Mpa air pressure to ensure the tightness.
5. Suitable for water, R134A, R22, R404A, R407C refrigerant and so on
Specificaiton:
| Fin Type | Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) | |||||
| Flat fin | Sine wave with blade fin |
Smooth sine wave fin |
Window fin | Sesamoid fin | ||||||
| A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | |
| B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | |
| C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | |
| D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | |
| E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | |
| E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
| F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | |
| G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
| H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | |
| I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | |
| J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | |
| K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / | |
Application:

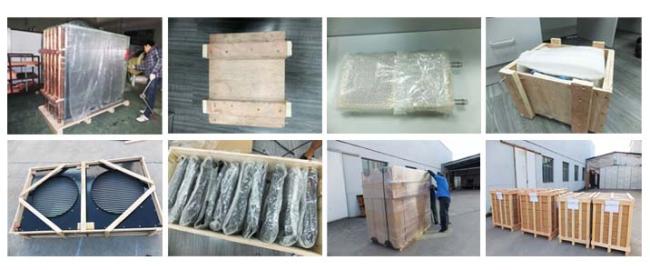

Packing way:
