3003 Aluminum Pc Radiator
Price:
6~30USD/Unit
MOQ:
10 pcs
Delivery Time:
7~10 days
Brand:
Shenglin
Product Description

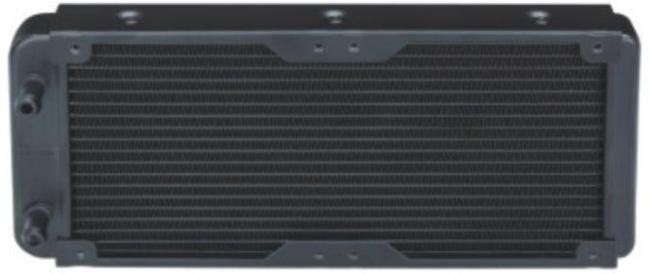

Water Cooling Radiator For PC Cooling
Features
1. Material: 3003 aluminum
2. Flat tube: 22,18,26,32,16mm
3. Fin height: 7~8mm, fin space 2.2~3.5mm
4. Fin height: 4.5~4.55mm, fin space 1.8~2.2mm
5. Can do powder coating.
Technical parameter
| Model | Product data | Product photo | Remark |
| CPU-001 | Core dimension:89.5*99*16mm Outside dimension:131*100*32mm Installation dimension:82.5*82.5mm Inlet and outlet:G 1/4 screw thread |
 |
|
| CPU-120A-10 | Core dimension:116*108*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU002B-10 | Core dimension:116*108*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread |
 |
|
| CPU-003A-10 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-003B-10 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread |
 |
|
| CPU-004 | Core dimension:80*80*16mm Outside dimension:105*83*26mm Installation dimension:71*71mm Inlet and outlet:∅ 8mm |
 |
|
| CPU-120A-12 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-120A-18 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-120B-18 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread |
 |
|
| CPU-240A-12 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-240A-18 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-240B-18 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread |
 |
|
| CPU-360A-18 | Core dimension:354*118*16mm Outside dimension:395*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm |
 |
The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
Application:
PC, 3D printer (circuit control), laser printer, medical equipment, hairdressing equipment, CNC machine tool computer version, electrical cabinet (water cooling), automation equipment (such as CNC machine), welding machine, wine cabinet, small system Ice machine and small air conditioner.
