Hot Water 52KW Rooftop Heat Pump High Temperature Rooftop Hvac Units
Industrial Use High Temperature Hot Water Heat Pump
Description:
This high temperature hot water heat pump adopts EVI scroll compressor and capable producing hot water with maxiamum temperature up to 85℃, which is ideal for both commercial and industrial applications to kill legionellae and some other bacteria. It uses R134A refrigerant, which is not only eco-friendly but also reliable and stable especially for the system producing high temperature hot water. Suitable: satisfy most water demand for high temperature water in industrial production.
Features:
Intelligent control: Micro processor based digital controller with LCD display.
Durable- more than 15 years life span.
Adjustable water temperature setting: 25~85℃
EVI scroll compressor specially designed for high water temperature heat pump.
ECO-friendly refrigerant R134A
High effciency tube-in-shell water heat exchanger.
Easy installation and operation.
Optional:
Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R22, R407C and R410A is available
Technical paramater:
| High temperature Industrial hot water heat pump | ||||
| MODEL | KFXG-013UAII | KFXG-026UAII | KFXG-052UAII | |
| Ambient temp. range | ℃ | -7~45℃ | ||
| Rated heating capacity | KW | 13 | 26 | 52 |
| COP | W/W | 2.9 | 3 | 3 |
| Heating input power | KW | 4.48 | 8.67 | 17.3 |
| Max. running current | A | 12.5 | 26 | 48 |
| Power supply | / | 380V 3N~50Hz | ||
| IP code | / | IPX4 | ||
| Safety function | / | High and low pressure protection,Overload protection,Temperature protection Power phase sequence protection, etc. |
||
| Refrigerant type/weight | -/kg | R134a/4.25 | R134a/4.5×2 | R134a/7.5×2 |
| Compressor QTY | PCS | 1 | 2 | 2 |
| Compressor type | / | Scroll | ||
| Max.temp.outlet water | ℃ | 80 | ||
| Water side heat exchanger type | / | High efficiency tank/stainless steel/Casing | ||
| Air side heat exchanger type | / | Finned heat exchanger | ||
| Waterpipe Nozzle size | inch | G1'' Internal thread | G1 1/2'' Internal thread | DN80 |
| Rated water flow | m³/h | 2.2 | 4.5 | 8.9 |
| Air out type | / | Top discharge | ||
| Fan motor QTY | PCS | 1 | 2 | 2 |
| Noise | dB/(A) | 56 | 65 | 69 |
| Machine dimension (W×D×H) | mm | 750×690×1070 | 1500×690×1070 | 2100×1100×2000 |
| Packing dimension (W×D×H) | mm | 800×740×1200 | 1550×740×1200 | 2140×1200×2040 |
| Net weight | kg | 130 | 320 | 700 |
| Gross weight | kg | 150 | 370 | 800 |
| Remarks: 1. Test conditions: (DB/WB) 20°C/15°C, inlet water temperature 60°C, outlet water temperature 65°C. 2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. |
||||
Packing:
 |
 |

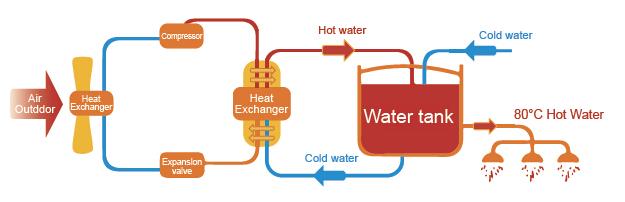

Schematic:
