CE Certification Rooftop HVAC Unit For Shopping Mall Air Conditioning System
CE Certification Rooftop HVAC Unit For Shopping Mall Air Conditioning System
Description:
1. Air cooled rooftop air conditioner.
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.
Main Features
| A. Efficient Operation | Our packaged rooftop units cut energy costs significantly while meeting all applicable code compliance requirements. |
| B. Simplified Installation | Embedded Smart Equipment and thoughtful design features make installation, start-up and commissioning faster and more accurate. |
| C. Integrated Flexibility | Field-installed accessories and an array of heating and air conditioning options help meet the needs of more applications. |
Application:
Used in a large number of fresh air and exhaust air conditioning system.
Such as laboratory, which need a lot of fresh air for security needs. If the energy of exhaust can be recovered, a lot of energy will be saved through preheat or pre cooling the fresh air.
Full heat recovery can recover latent heat, and partial heat recovery can not be.
Wherever phase change heat recovery can be achieved, full heat recovery technology can be used.
  |
  |
| Pre-Sales Service | After-Sales Service |
| Inquiry and consulting support | Training how to instal the machine, training how to use the machine |
| Sample testing | Engineers available to service machinery overseas |
After-sales service example:

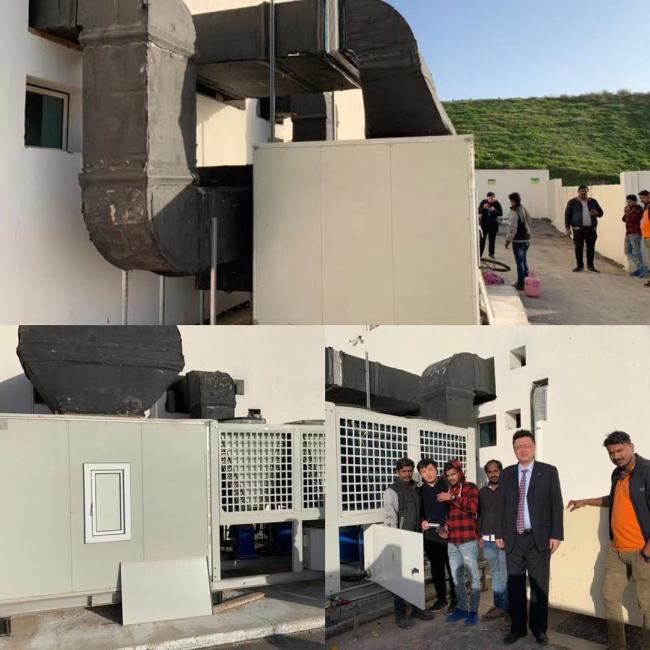

Commissioning in Jordan.
Reference:
| Country: Turkey Application:distributor Type: heat pump type Cooling capacity: 108.9KW; Heating capacity: 113KW; 380V-3Ph-50hz R410a ESP: 350 Pa; 19940 m3/h 25% fresh air; |
Country: Nigeria Application: Pharmaceutical Factory Type: heat pump type Cooling capacity: 36.2kW Heating capacity: 82kW Refrigerant: R407C Compressor: Sanyo |
Country: Jordan Application: Textile Factory Type: heat pipe heat recovery type Cooling capacity: 368kW Heating capacity: 359kW Refrigerant: R410A Compressor: Copeland With heat recovery coil |
 |
 |
 |
| Country:UAE Application:offshore Drilling Platform Cooling capacity: 80kw Supply air volume: 4000×2 m3/h Condensing fan: 12000m3/h Refrigerant: R407C Power supply:430V-3Ph-60Hz Evaporator & condenser type: copper tube epoxy aluminum fin |
Country:Australia Application:hall Cooling capacity: 128kw Heating capacity: 135kw Capacity regulator: 0,25,50,75,100 Power supply: 415V/3PH/50hz Refrigerant:R410A |
Country:China Application: Amusement park Cooling capacity: 180kw Heating capacity: 192.5kw Supply air volume: 32000m3/h ESP: 550pa Power supply: 380V/3PH/50hz Refrigerant:R22 |
 |
 |
 |
| Country: China Application: Rolling bearing manufacturer Type: wheel heat recovery type One model: Cooling capacity: 95kw Condensation and heating capacity: 55kw Supply air volume: 19000m3/h Exhaust air volume: 19000m3/h Another model: Cooling capacity: 210kw Heating capacity: 215kw Supply air volume: 38000m3/h Exhaust air volume: 38000m3/h |
Country: China Application:Flight simulation system laboratory Cooling capacity:10kw Supply air volume:3000m3/h Power supply: 380V/3PH/50Hz |
Country: China Application:Ferry waiting hall Type: heat pump type Cooling capacity:182.5kw Supply air volume: 22000m3/h |
 |
 |
 |
