Yttria Stabilized 9Moh's Zirconia Grinding Beads Grinding Media Balls
Factory Price Yttria Stabilized Zirconia Bead Ceramic Grinding Media
Describtion :
Yttria stabilized zirconia bead ceramic grinding media are especially suitable for vertical stirred mill, rolling ball mill, vibrating mill and all kinds of high speed wire rod pin sand mill, etc., for all kinds of requests and cross contamination of slurry and powder, wet and dry ultrafine dispersing and grinding. The application fields are as follows:
1. Coating, paints, printing and inkjet inks
2. Pigments and dyes
3. Chemicals including Agrochemicals e.g. fungicides, insecticides
4. Electronic materials and components e.g. CMP slurry, ceramic capacitors, lithium iron phosphate battery
5. Pharmaceuticals,Food
6. Minerals e.g. TiO2 GCC and Zircon
Physical parameters:
| Items | Specification |
| ZrO2 | 94.7±0.2% |
| Y2O3 | 5.2±0.2% |
| Bulk Density | ≥3.72g/cm3 |
| Specific Density | >6.03g/cm3 |
| Compressive strength | >2.0KN (Φ1.5mm) |
| Hardness(HV) | >1200 |
| Self consumption (ppm/h) | <3 |
| Roundness | ≥95% |
| Color | Pure White |
Available Size (mm)
| 0.08-0.15 | 0.1-0.2 | 0.2-0.25 | 0.2-0.3 | 0.3-0.4 | 0.4-0.5 |
| 0.5-0.6 | 0.4-0.6 | 0.6-0.8 | 0.7-0.8 | 0.8-1.0 | 0.9-1.1 |
| 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
|
2.2-2.4 |
2.4-2.6 | 2.6-2.8 | 2.8-3.0 | 3.0 | 5.0 |
| 6.0 | 7.0 | 8.0 | 10.0 | 12 | 15 |
| 20 | 25 | 30 | 35 | 40 | 50 |

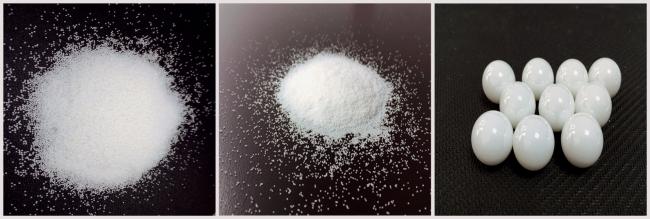

More pictures:
