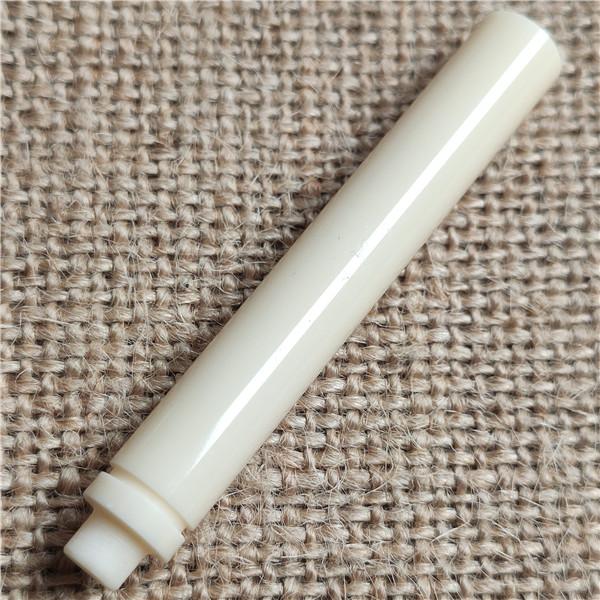

Yttrium Stabilized Zirconia Ceramic Rods Mirror Surface Wear Resisting
Mirror surface wear-resisting yttrium stabilized zirconia ceramic rods
Description:
1. Supplying samples ahead for reference
2. Various sizes in stock!!
3. Best delivery time
4. Competitive price
5.. Professional service
6. High quality with QC attached each parcel
7. ZrO2: 95%
8. Raw material from China,Germany, Japan
Principal characteristic of Zirconia Ceramic Rods
1.High density
2. High fracture toughness
3.High hardness High Mechanical Strength
4. Low thermal conductivity Excellent insulation
5. Good Wear resistance
6.Resistant to Corrosion and Chemical Attack
7. Extreme Temperature Stability
8. Outstanding Electrical and Electronic Properties
Application of Zirconia Ceramic Rods
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields
Technical Parameters
Performance | Unit | Typical value |
Density | g/cm3 | >6.0 |
HV Hardness | Kg/mm2 | >1300 |
Compressive Strength | MPa | 5500 |
Flexural Strength | MPa | 1250 |
Modulus of Elasticity | Gpa | 200 |
Thermal Conductivity | W/(m.k) | 3(20-400℃) |
Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
Facture Toughness | Mpa.m0.5 | 8 |
Grain Size | um | 0.5 |
| Name: | Mirror surface wear-resisting yttrium stabilized zirconia ceramic rods | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm | 15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. Good smooth and high strength.
2. Extreme hardness, good protection from abrasion and corrosion.
3. High temperature resistance up to 1800℃
4. High dielectric properties.
5.Optimum air tightness
Application:
Insulating rod, wear resistant bar.

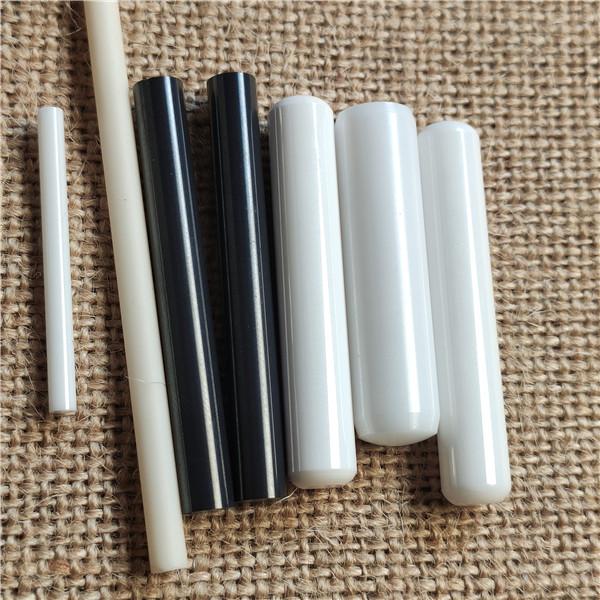

More Picture:
Packaing:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
Why Choose Us?
1.5 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service
