Premium Yttria Stabilized Zirconia YSZ Milling Media
Premium Yttria Stabilized Zirconia YSZ Milling Media
Descirption:
Premium Yttria Stabilized Zirconia YSZ Milling Media with size ranging from 0.1mm to 50mm.
Yttrium stabilized Zirconia beads are highly efficient and durable media for attrition milling and ball milling of ceramic materials. They are available in different sizes, as can be seen on our website. In fact, you will also be able to get custom dimensions if you contact us. We can provide you these beads in both cylindrical and spherical forms.
Physical parameters
| Items | Specification |
| ZrO2 | 94.7±0.2% |
| Y2O3 | 5.2±0.2% |
| Bulk Density | ≥3.72g/cm3 |
| Specific Density | >6.03g/cm3 |
| Compressive strength | >2.0KN (Φ1.5mm) |
| Hardness(HV) | >1200 |
| Self consumption (ppm/h) | <3 |
| Roundness | ≥95% |
| Color | Pure White |
Available Size (mm)
| 0.08-0.15 | 0.1-0.2 | 0.2-0.25 | 0.2-0.3 | 0.3-0.4 | 0.4-0.5 |
| 0.5-0.6 | 0.4-0.6 | 0.6-0.8 | 0.7-0.8 | 0.8-1.0 | 0.9-1.1 |
| 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
|
2.2-2.4 |
2.4-2.6 | 2.6-2.8 | 2.8-3.0 | 3.0 | 5.0 |
| 6.0 | 7.0 | 8.0 | 10.0 | 12 | 15 |
| 20 | 25 | 30 | 35 | 40 | 50 |
advantages:
1. High purity: made of high grade yttria stabilized zirconia precursors in the nano-meter range, which is also chemically co-precipitated.
2.High density media ideal for high energy mills, maximizing throughput and productivity.
3.High fracture toughness and high wear resistance minimize the contamination of beads during high speed milling.
4.15% superior to Ceria Stabilized Zirconia medias in wear rate through many tests.
Applications:
1.Coating, paints, printing and inkjet inks
2.Pigments and dyes
3.Pharmaceuticals
4.Food
5.Electronic materials and components e.g. CMP slurry, ceramic capacitors, lithium iron phosphate battery
6.Chemicals including Agrochemicals e.g. fungicides, insecticides
7.Minerals e.g. TiO2 GCC and Zircon
8.Bio-tech (DNA & RNA isolation)
9.Flow distribution in process technology

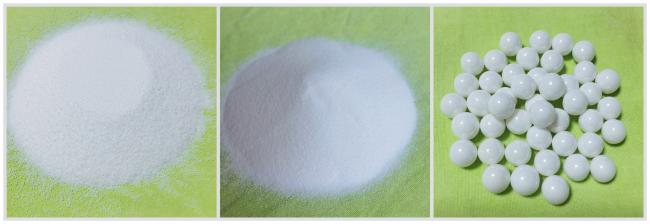

More pictures:
