0.1-50mm Pure White Yttrium Stabilized Zirconia Beads for Grinding
0.1-50mm Pure White Yttrium Stabilized Zirconia Beads for Grinding
Descirption:
Yttria zirconia beads are made of high-grade and nanometre Yttria Stabilized Zirconia (YSZ) which is proudly produced by our own facility in large and homogenous batches. This advanced precursor material guarantees excellent mechanical properties, outstanding wear resistance and good corrosion resistance. This high density bead is used to achieve maximum milling results at minimum product contamination rates.
Choosing this product gives your company a number of advantages. One of them is low service cost, which occurs as it decreases the cost of power consumption, equipment, labor, and media abrasion. It also results in great improvements with respect to product quality.
Physical parameters:
| Items | Specification |
| ZrO2 | 94.7±0.2% |
| Y2O3 | 5.2±0.2% |
| Bulk Density | ≥3.72g/cm3 |
| Specific Density | >6.03g/cm3 |
| Compressive strength | >2.0KN (Φ1.5mm) |
| Hardness(HV) | >1200 |
| Self consumption (ppm/h) | <3 |
| Roundness | ≥95% |
| Color | Pure White |
Available Size (mm):
| 0.08-0.15 | 0.1-0.2 | 0.2-0.25 | 0.2-0.3 | 0.3-0.4 | 0.4-0.5 |
| 0.5-0.6 | 0.4-0.6 | 0.6-0.8 | 0.7-0.8 | 0.8-1.0 | 0.9-1.1 |
| 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
|
2.2-2.4 |
2.4-2.6 | 2.6-2.8 | 2.8-3.0 | 3.0 | 5.0 |
| 6.0 | 7.0 | 8.0 | 10.0 | 12 | 15 |
| 20 | 25 | 30 | 35 | 40 | 50 |
advantages:
1. High purity: made of high grade yttria stabilized zirconia precursors in the nano-meter range, which is also chemically co-precipitated.
2. High density media ideal for high energy mills, maximizing throughput and productivity.
3.15% superior to Ceria Stabilized Zirconia medias in wear rate through many tests.
4. Excellent tenacity, impact-resistance, which make the bead keep fine in high rotation speed, low friction coefficient makes the lower abrasion to the equipment.
Applications:
1. Electronic material (Such as BaTiO3,BaCO3), Magnetic bands superfine grinding,
2. Paint, pigment, Coatings dispesing and superfine grinding,
3. Ceramic glaze (zirconia sand) superfine grinding,
4. Medication, Cosmetic dispersing .
5. Bio-tech (DNA & RNA isolation).

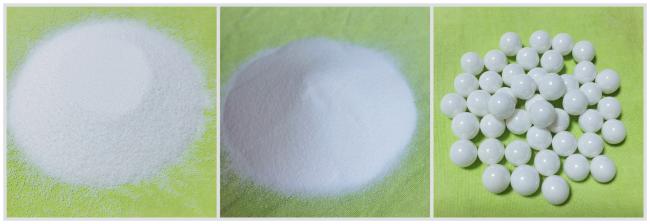

More pictures:
Packaging:
