Bearing Valve 60mm Ceramic Valve Balls Pure White High Precision
High precision ceramic balls for bearings, pumps, and valves
Descirption:

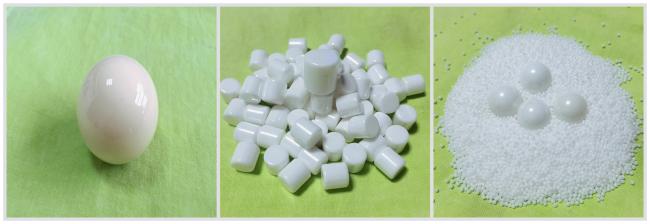

High precision ceramic balls with size ranging from 0.4mm to 60mm.
Yttrium stabilized Zirconia beads are highly efficient and durable media for attrition milling and ball milling of ceramic materials. They are available in different sizes, as can be seen on our website. In fact, you will also be able to get custom dimensions if you contact us. We can provide you these beads in both cylindrical and spherical forms.In addition, zirconium oxide ceramic balls are commonly used in flow control applications such as check valves, and they are also popular for use in the medical field due to their high strength and purity.
Physical parameters:
| Items | Specification |
| ZrO2 | 94.7±0.2% |
| Y2O3 | 5.2±0.2% |
| Bulk Density | ≥3.72g/cm3 |
| Specific Density | >6.03g/cm3 |
| Compressive strength | >2.0KN (Φ1.5mm) |
| Hardness(HV) | >1200 |
| Grade | G5-G100 |
| Roundness | ≥0.98(Xmin/Xmax) |
| Color | mirror |
advantages:
1.Zirconium balls maintain their high strength up to 1800 ºF
2.Highly resistant to abrasion and corrosion
3.Chemically inert to caustics, molten metals, organic solvents, and most acids
4.Undergoes transformation toughening when subject to stress
5.High strength and toughness
6.High temperature resistance
7.High durability
8.High load capacity
9.Non-magnetic
Applications:
1.High-performance bearings, pumps, and valves.
2.Check valves.
3.Flow meters.
4.Measurement instruments.
5.Medical & Pharmaceutical industries.
6.Food & Chemical industries.
7.Textile.
8.Electronics.
More pictures:

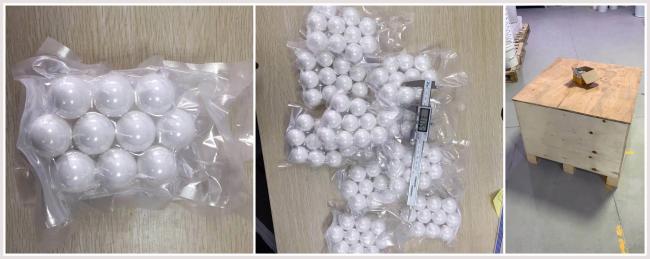

Packaging:
