Machinable 400mm Zirconia Rod High Mechanical Strength
High mechanical strength zirconia machinable ceramic rods
Description:
We produce and sell high-quality, high-precision ceramic rods. Our ceramic rods have a wide range of applications.Dimensions:1~400mm length ;Diameter as small as 0.5mm(can be customizations).
Choosing this product gives your company a number of advantages. One of them is low service cost, which occurs as it decreases the cost of power consumption, equipment, labor, and media abrasion. It also results in great improvements with respect to product quality.
Technical Parameters:
| Name: | High mechanical strength zirconia machinable ceramic rods | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm | 15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. Good smooth and high strength.
2. Extreme hardness, good protection from abrasion and corrosion.
3. High temperature resistance up to 1800℃
4. High dielectric properties.
5.Optimum air tightness
Application:
Ceramic rods will be used to laboratory technology, laser technology, mechanical and chemical process engineering, metal industry, semiconductor processing equipment.

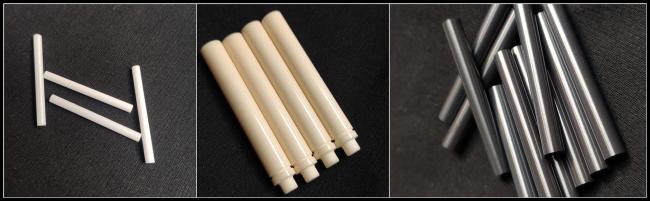

More pictures:
Packaging:
Why Choose Us?
1.5 years of professional production industrial ceramics factory.
2.High quality products with low price.
3.High precision parts with lowest tolerance.
4.Short time for production.
5.Has a group of experienced, professional and efficient R&D team.
