Precision 1300kg/Mm2 Zirconia Ceramic Piston Self Lubricating
High purity High precision Zirconia Ceramic Piston
Description:
The ceramic piston is mainly applicable to petroleum industry, chemical industry, food industry, which is used to replace the metal plunger and solve the problems of poor corrosion resistance, low-temp resistance, short service life. It has high performance of wear-resistance, corrosion-resistance and shock resistance. Compared with metal plunger, the service life of ceramic plunger is 6-10 times longer. Ceramic plunger can not only greatly improved the output of crude oil, but also reduce the cost of viscous oil production.
This technology belongs to the international advanced level.
Technical Parameters:
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| HV Hardness | Kg/mm2 | >1300 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
features:
1. The shape and size can be customized according to your requirements;
2. Minimum filling volume: 0.2ml
3. Maximum filling volume: 50ml
4. Filling accuracy: ≤0.5%
5. Extremely smooth surface
6. Maintenance-free
7. Significantly extends life
8. Excellent wear and corrosion resistance
9. Superior mechanical strength
Application of Zirconia Ceramic Piston:
1. Topical and parenterals: inject able in vials, ampoule, syringes, enema.
2. Entrails: syrups, capsules, drop
3. Liquid Food
4. Beer, beverage, dairy, wine, edible oil.
5. Cosmetics:Perfumes, lotions, creams, pastes, shampoo and make-up.

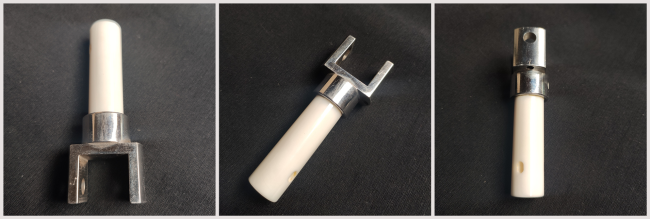

More pictures:
Packaging:
