White 100ml Zirconia Ceramic Piston Wear Resistance Vacuum Pump
Customized Advanced Zirconia Ceramic Piston for any size
Description:
1. The raw materials are all medical grade and tested by cytotoxicity.
2. High hardness, high wear resistance, high temperature resistance, corrosion resistance and stable performance.
3. The working face of the plunger adopts a special process and has self-lubricating effect.
4. The inner cavity surface adopts fluid structure, no dead angle, smooth surface like mirror surface, vibration polishing, convenient for cleaning and disinfection.
5. The pump body structure is sealed with 316L stainless steel for easy disassembly.
6. The product has been tested for safety such as corrosion resistance, acidity and alkalinity, and the indicators have reached the level of international similar products.
Technical Parameters:
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| HV Hardness | Kg/mm2 | >1300 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
Features:
1. Strong physical strength with super high hardness
2. Excellent chemical inertness and no pollution to medium
3. Similar C.T.E. with steel, easy to assemble with other metal parts directly
4. Outstanding abrasion & corrosion resistance in harsh working environments
5. Anti high-temperature creeping and good thermal stability
6. Self-lubricating and maintenance free under heavey working load with non-stop running
Application of Zirconia Ceramic Piston:
1. inject able in vials, ampoule, syringes, enema.
2. Entrails: syrups, capsules, drop
3. Liquid Food:Beer, beverage, dairy, wine, edible oil.
4. Cosmetics:Perfumes, lotions, creams, pastes, shampoo and make-up.

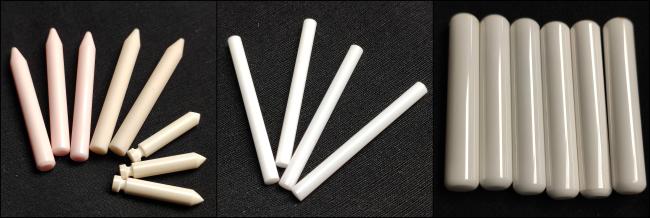

More pictures:
