Diamond Polished Wear Resistance Precision Zirconia Ceramic tube
Diamond Polished Wear Resistance Precision Zirconia Ceramic tube
Description:
Zirconia Ceramic not only have good feature of high hardness and high wear resistance,but also is excellent in toughness among fine ceramic material, so it's commomly used for structural parts and wear parts. As thermal expansion coefficient is close to the steel, it is also used to connecte ceramic and steel. Expect coommonly used in the field of industrial structural parts, Zirconia Ceramic is also widely used in daily-used ceramic because of its jade-like texture.
Technical Parameters
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
| Name: | Diamond Polished Wear Resistance Precision Zirconia Ceramic tube | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Principal characteristic of Diamond Polished Wear Resistance Precision Zirconia Ceramic tube
1.High density: over 6 g/cm3, which makes it the densest body of the ceramic products
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with a longer life cycle
5. Low thermal conductivity: less than 3 W/m.k at ambient temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above 99% alumin
Application :
Various wear parts for wear applications.
1. Valves and pump components.
2. Ceramic plain, balls and roller bearings.
3. Tubes, fixtures etc. for High temperature.
4. Copper tube extruding & reducer dies.

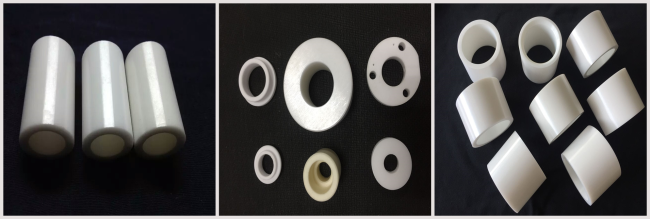

More pictures:
