6.0 Density Yttria Stabilized Zirconia Ceramic Tube
6.0 Density Yttria Stabilized Zirconia Ceramic Tube
Description:
Ceramic is a strong, durable, sturdy material, and has excellent hardness and toughness, wear resistance, and it also has good electric insulation and chemical resistance. Parts made from it, used in manufacturing industries, are often called engineering ceramics. Engineers usually demand higher performance, longer life, and lower maintenance costs which are not satisfied by traditional materials. Ceramic parts, made from zirconia, alumina, silicon carbide etc., are excellent alternative choice for those demands.
Technical Parameters:
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
| Name: | 6.0 Density Yttria Stabilized Zirconia Ceramic Tube | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Principal characteristic:
1. Isostatic pressed.
2. Fire resistance.
3. Superior mechnical strength.
4. High corrosion and wear resistance.
5. High Temperature Resistance.
6. Good Insulation Performance Precision.
Application :
1. Precision ball valve (balls and seats).
2. Pump seals, valves and impellors.
3. High density grinding media.
4. Oxygen sensors.
5. Threadguides.
6. Fuel cell membranes.
7. Cutting blades.
8. Radio frequency heating susceptors.

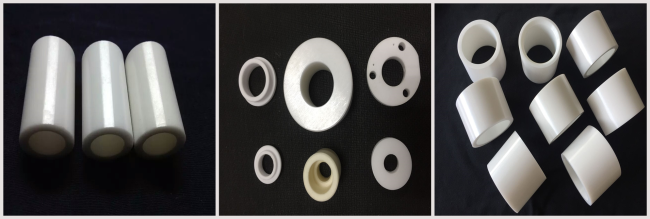

More pictures:
