Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Yttrium-Stabilized Zirconia Ceramic (YSZ) Protection Tube
Description:
Unlike traditional ceramics that tend to be hard and brittle, Zirconia Ceramic offers high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance; all without the most common property of ceramics – high brittleness. Its unique resistance to crack propagation and high thermal expansion make it an excellent material for joining ceramics with metals like steel.
Technical Parameters:
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
Principal characteristic
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength Up To Mohs 9.0; HRA 80-90, Wear Resistance wear rate 0.68 mm3·m-2·h-1
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
Application :
Zirconia tubes and and rods are used in shaft, plunger, sealing structure, automobile industry, oil drilling equipment, Insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.

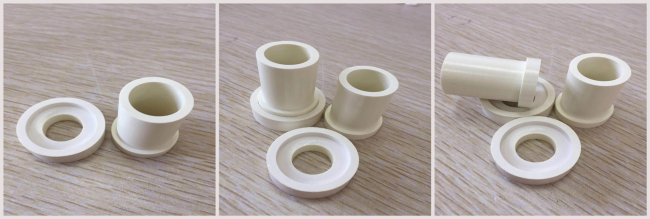

More pictures:
