High Purity Al2O3 3.9g/Cm3 Alumina Ceramic Rod Electromechanical Shaft
High purity Al2O3 alumina ceramic rod for electromechanical shaft
Description:
Alumina Ceramic (Aluminum Oxide or Al2O3) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Additionally, it is extremely resistant to wear and corrosion. Alumina components are used in a wide range of applications such as electronics, pump components and automotive sensors. Alumina components can be formed by a variety of manufacturing techniques such as uniaxial pressing, isostatic pressing, injection molding and extrusion. Finishing can be accomplished by precision grinding and lapping, laser machining and a variety of other processes.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. Excellent insulation ,security , long working life .
2. Precise grinding and polishing.
3. Excellent heat radiation, small size ,more environmental and energy-efficient .
4. good thermal conductivity.
5. large specific heat capacity.
6. low pressure drop.
Application:
1. Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
2. As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-rlieving, pre- heating & post heating, other resistance-heating environment.
3. halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.
4. high-power electrical applicance and all kinds of insulation device.

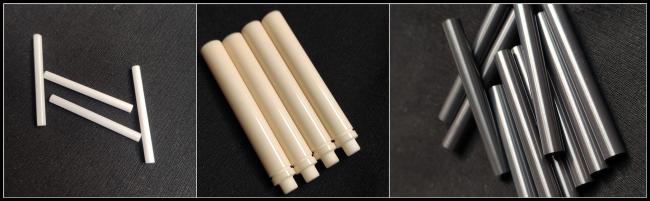

More pictures:
Why Choose Us?
1.5 years of professional production industrial ceramics factory.
2.High quality products with low price.
3.High precision parts with lowest tolerance.
4.Short time for production.
5.Has a group of experienced, professional and efficient R&D team.
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service.
