Diamond machining for dense 3mm diameter zirconia ceramic rods
Diamond machining for dense 3mm diameter zirconia ceramic rods
Description:
The ceramic plunger is mainly applicable to petroleum industry, chemical industry, food industry, which is used to replace the metal plunger and solve the problems of poor corrosion resistance, low-temp resistance, short service life. It has high performance of wear-resistance, corrosion-resistance and shock resistance. Compared with metal plunger, the service life of ceramic plunger is 6-10 times longer. Ceramic plunger can not only greatly improved the output of crude oil, but also reduce the cost of viscous oil production.
Our range of pressed ceramic products are suitable for applications requiring parts with less severe constraints. The properties required for their applications are obtained by cooking above 1,000 °C.
Parts are manufactured by cutting and shaping by means of drying presses, via a wet process and using extruders. Treatment can be carried out on crude materials. The need to make shaping tools means this ceramic range consists only of the large variety.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. High heat resistance .
2. Good wear resistance .
3. High corrosion resistance .
Application:
1.Kiln furniture, components & accessories.
2.Thermocouple protection tubes.
3.Heater Support Elements.
4.High Temperature Electrical Insulators.
5.Extreme temperature measurement components.

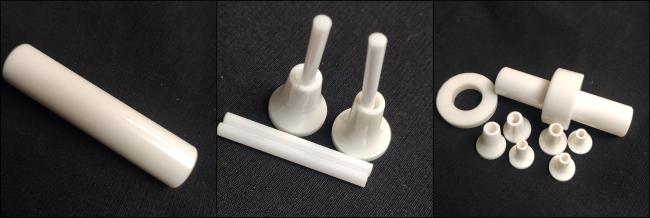

More pictures:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
