Ceramic Wear Resistant 3mm 2000mm Alumina Ceramic Piston Pump
Advance Technical Ceramic Wear Resistant Alumina Ceramic Piston Pump
Description:
Alumina ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.
Each stabilized zirconia provides unique and specific properties that meet the demands of extreme applications found in many industries.With our production capability through CNC, precision grinding machines, we are able to provide many different levels of precision zirconia ceramic parts to meet customers' high precision assembly needs.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
(1) Ceramic plunger adopts high-performance technical ceramic material, which has high hardness, wear resistance, high temperature resistance and corrosion resistance. Ensure material performance is reliable.
(2) The microporous structure obtained by the unique working method of the ceramic plunger working surface has self-lubricating effect, which changes the mechanism of sliding friction and lubrication of the conventional plunger pump.
(3) The inner cavity surface adopts a fluid structure with no dead angles or grooves. The surface of the inner cavity is matched with the surface of the plunger by an advanced high-precision internal and external cylindrical grinding machine to the mirror surface, and the outer surface is vibrated and polished to facilitate cleaning and disinfection.
Application:
Machinery, fiber optic, knife, medical, food, petroleum etc.Specific application: plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.

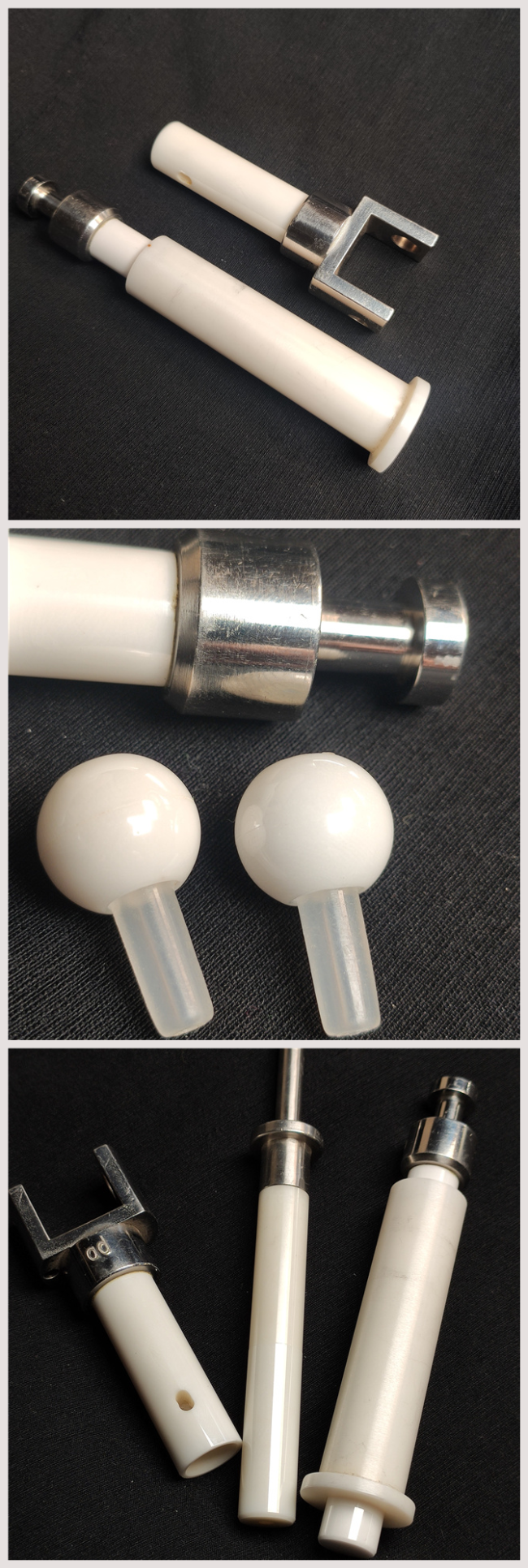

More pictures:
Why Choose Us?
1. 5 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service
