Wear Resistant 100mm 2000mm Ceramic Alumina Tube Al2O3
Wear Resistant high purity Ceramic Alumina Tube
Description:
Alumina ceramics is a ceramic material with alumina (Al2O3) as the main body, used for thick film integrated circuits.Alumina ceramics have good conductivity, mechanical strength and high temperature resistance.Alumina ceramics is a widely used ceramics, because of its superior performance, has been more and more widely used in modern society, to meet the needs of daily use and special performance.
We manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic disc, ceramic rod, ceramic arms, ceramic wire guides. Whatever, its a prototyping case, or high volume demand, we believe we are able to provide you a desirable solution.
Technical Parameters:.
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. High quality alumina tubes
2. Diameter from 1mm to 120mm,Length from 100mm to 2000mm, multi bores tubes can be made.
3. Max working temperature 1800
4. Out surface can be grinded drilling hole to make tight tolerance and right instillation.
5. Great mechanical strength.
6. Good heat resistant.
7. Good quality and best price.
8. Long life time.
9. Large quantity in stock makes fast delivery and competitive prices.
Application:
1.mining industry.
2.Cement industry.
3. Coal handling industry.
4.Steel industry.
5.Port industry.

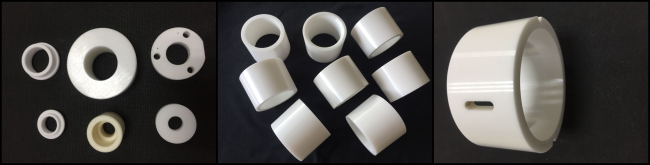

More pictures:
Packaging:
