Corrosion Resistance Hardness Wear 99% Alumina Ceramic Tube
Corrosion Resistance Hardness Wear 99% Alumina Ceramic Tube
Description:
Alumina ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.
Good smoothness, mechanical seal good, polishing surface and so on.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.. High hardness, it is can be up to 1700 HV, and Super compressive strength up to 2240 Mpa
2. High heat resistance: Alumina ceramic parts offer excellent thermal stability, which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: it is an ideal choice to wear parts in high abrasive industry
4. High electrical resistivity: used in all-electric products, electric heating products, and wear-resistant machinery parts.
5. High corrosion resistance: It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Application:
Wear resistant ceramic tube is conveying granular material, grinding, corrosive medium, such as the ideal wear and corrosion resistance, pipelines, widely used in electric power, mining, iron and steel, cement, chemical industry etc.

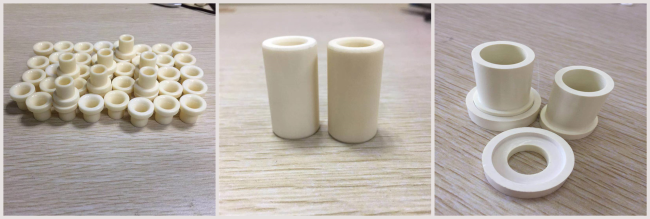

More pictures:

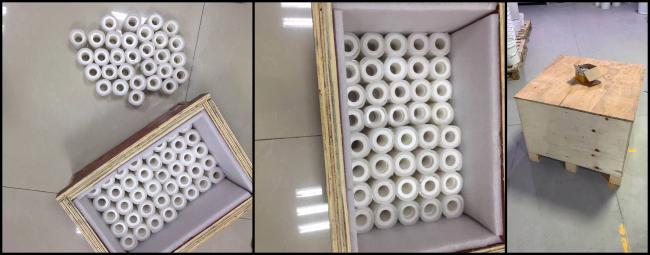

Packaging:
