Industrial Precision Processing Alumina Ceramic Tube
Industrial Precision Processing Alumina Ceramic Tube
Description:
Alumina ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.
Good smoothness, mechanical seal good, polishing surface and so on.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.Outstanding wear resistance, over 276 times in comparison with traditional stainless steel
2.Great mechanical properties, with diamond-like hardness, excellent compressive and dense body
3. Exceptional corrosion resistance, it can withstand various strong acid and alkali, like HF, H2SO4
4. Extraordinary electrical insulation, it always used in various high voltage, high-current application
Application:
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other
thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength.

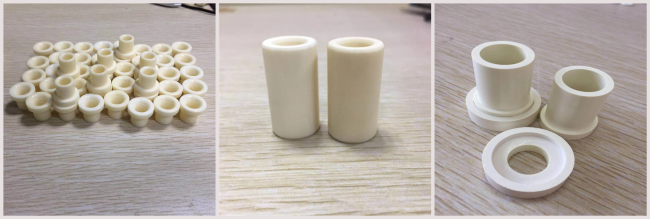

More pictures:
Packaging:
