CNC Machining 99.5% Alumina Ceramic Ring
CNC Machining 99.5% Alumina Ceramic Ring
Description:
Alumina Ceramic Baffle Ring Seal Ring Thrust Ring Alumina Zirconia Anti-friction Pump Components Circulating Pumps ceramic baffle ring made from 95%, 96% or 99% alumina. The ceramic baffles are anti-abrasive, anti-corrosive, high temperature resistant, can resist shock and heat, so they are often used in circulationg pumps, fountain pumps, as well as other kinds of pumps.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. Excellent insulation, security, long working life.
2. High temperature resistance
3. Resistance to electric breakdown
4. Stand wear and tear
5. High strength
6. Corrosion resistance
7. Good compactness
8. HIgh hardness
Application:
It is widely used in electronic, electrical, mechanical, chemical, metallurgical, textile, and other industries,etc.

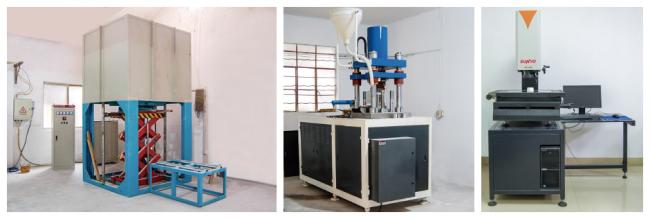

More pictures:

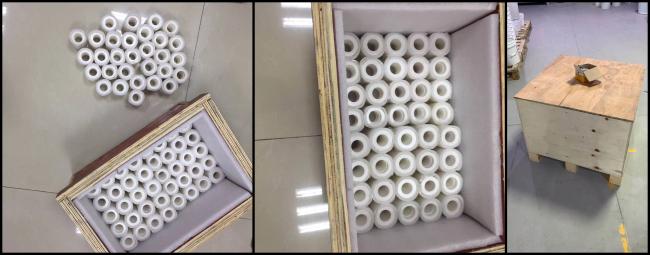

Packaging:
