Bore 0.8mm 1.2mm Misting Zirconia Ceramic Plate Industrial
Diameter of bore 0.8-1.2mm Zirconia Ceramic Misting Plate
Description:
Zirconia Ceramic Misting Plate made of high purity and super-fine raw material with the application of the most advanced technology in the world.
It can be mainly used to grind and disperse super-fine powder.Zirconia ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.High density
2.High corrosion resistance.
3.High strength and high fracture toughness.
4. High hardness and excellent wear resistance.
5.High temperature resistance ability.
6.Spray pattern: hollow cone
7.Used for atomizing-cooling, atomizing-humidifying
Application:
Moistening in air control chamber.
Cooling for gas and metal.
Liquid medicine spraying.
humidity conditioning.
evaporatibve cooling.

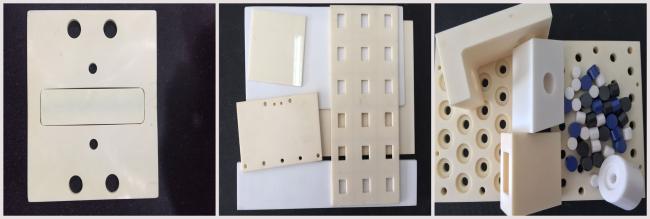

More pictures:
