2 ply corrugated paperboard machine line single facer corrugated production line

       AD-single face corrugated cardboard carton machine

AD-single face corrugated rolls machine is the most professional equipment

technical parameters as fllowing or custom as customer's demand.

Technical Parameter:

Structure & Configuration:

1.Hydraulic mill roll stand

2.Single facer machine

3.

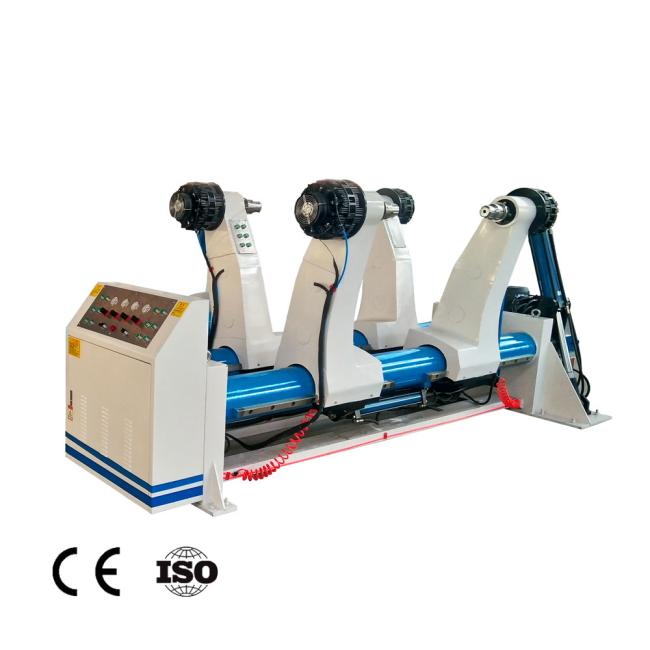

Hydraulic mill roll stand

Technical parameters:

1,the range of clamping paper:MAX1800mm MIN1000mm

2,clamping diameters:MAX1500mm MIN350mm

3,main shaft diameter of paper holder:242mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6

6,single weight:MAX4000Kg

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa 2,lifting hydraulic cylinder:100×440mm

3.Clamping hydraulic cylinder:63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

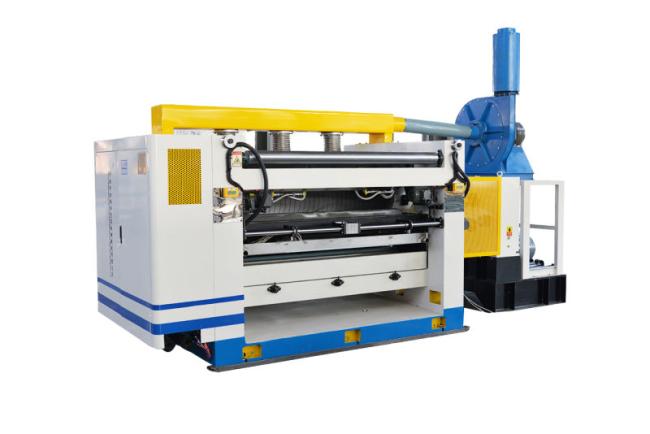

Single facer Machine

*Technical parameters:

1,working width:1600mm 2,operation direction:left or right(Determined in accordance with the customer's facility)

3,design speed:80m/min 4,temperature range:160—220℃

5,air source:0.4—0.9Mpa 6,heating method:heating exchange

*Roller diameters parameters:

1,corrugated roller diameter:280mm 2,pressure roller diameter:284mm

3,glue roller diameter:215mm 4,preheat roller diameter:320mm

5. Lower preheat roller 215mm

*Powered motor parameters:

1,main drive motor:7.5KW rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor:7.5KW rated voltage:380V 50Hz Continuous (S1) working standard

3,electric heating power:100KW rated voltage:380V 50Hz Continuous (S1) working standard

4,oil pump power:3KW rated voltage:380V 50Hz Continuous (S1) working standard

5.glue pump motor power :2.2Kw

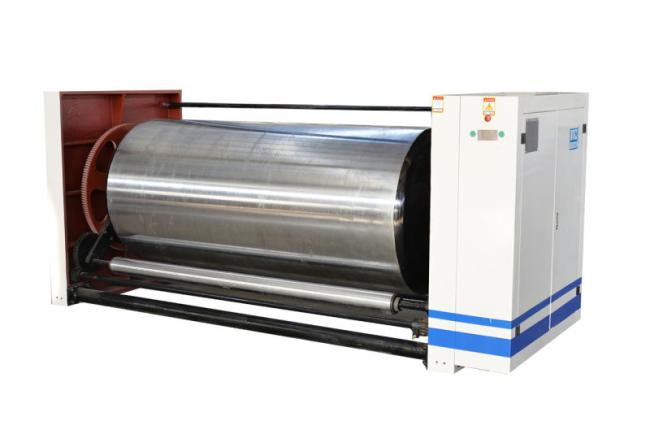

Preheater

*Technical parameters:

1,Effective width:1800mm

2,diameter of preheat roller:900mm

3,angle adjustment range:360°rotation

4,angle shaft diameter:110mm×2

5,steam temperature:150-180℃

6,steam pressure:0.8-1.3Mpa

7,equipment size:Lmx3.3*Wmx1.1*Hmx1.3

8,single weight:MAX1800Kg

9,working power:380V 50Hz

10,Motor power:250W short(S2)working system

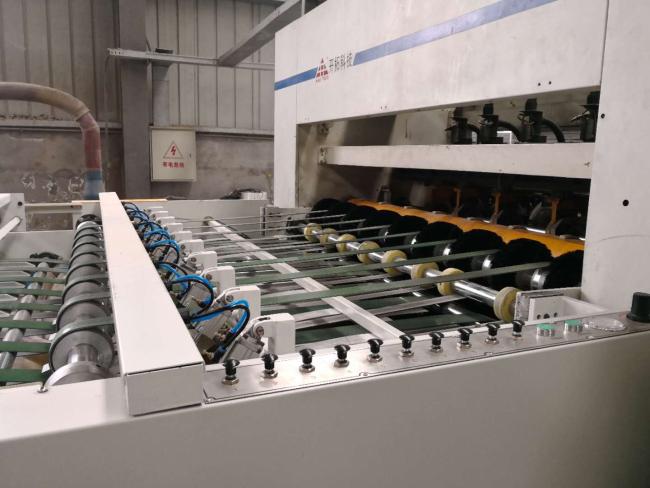

Slitter scorer and cutter machine

*Technical parameters:

1,The maximum working width:1800mm

2,operation direction:left or right(Determined in accordance with customer plant)

3,The maximum mechanical speed:150m/min

4,Mechanical configuration:Computer spiral knife crosscutting

5,Cutting length:300-1800mm

6,Minimum slitting width:180mm

7,Precision Cutter:±1mm(Uniform) ±1.5mm(Non-uniform)

8,5 groups 200blades

*Roller diameter parameters:

1,Cross on the knife shaft diameter:200mm Balancing done deal

2,Cross under the knife shaft diameter:200mm Balancing done deal

3,Under the pull roller diameter:156mm Balancing done deal

Note: After all have been grinding rollers, hard chrome plated at (upper and lower arbor exception) processing.

\
