Electric Single Facer Machine Corrugated Paperboard Production Line
vacuum Fingerless Single Facer Corrugated papercard Machine

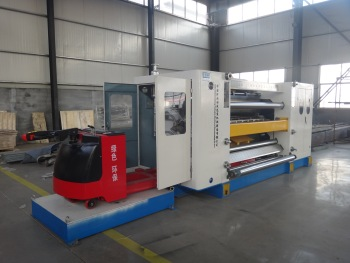

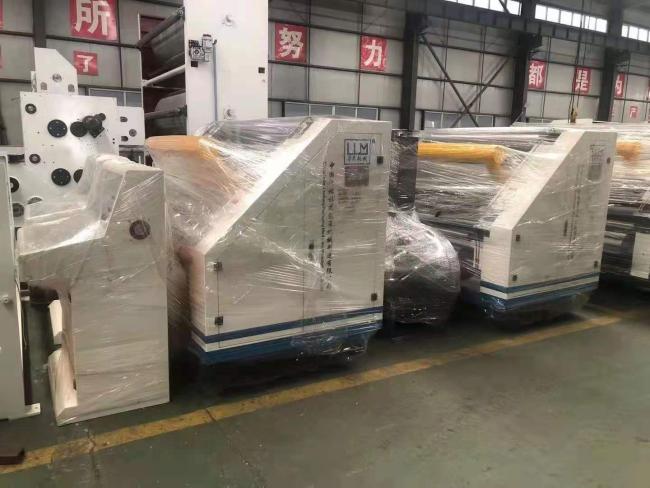

Corrugated board single facer
New promotion corrugated single facer roller machine
regular technical parameters:
1, effective width:1600mm 2,operation direction:left or right(determined in accordance with customer plant)
3, design speed:100m/min 4,temperature range:200—260℃
5, corrugated flute:(UV type or UVV type)
roller diameters parameters:
1 ,diameter of corrugated roller:¢ 280mm 2, diameter of pressure roller: ¢284mm
3, diameter of glue roller: ¢216mm 4, diameter of preheat roller: ¢320mm
powered motor parameters:
1, main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
2, suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
main purchased parts,materials and place of origin:
| Name of main parts | Brands or place of origin | Material and type |
| Wall and Pedestals | Production own | HT200 |
| Rotary joints and metal hoses | Shan dong teng zhou luguanqiu | |
| Main drive motor | Hebei Hengshui | 7.5Kwspeed motor |
| bearing | HRB,ZWZ,CYC or Zhengjiang wanxiang | |
| Seat belt bearing | Zhengjiang five rings | |
| High pressure air | Shanghai Yingfa | |
| cylinder | Zhengjiang Sanzheng | |
| contacts | Chint or de li xi |
