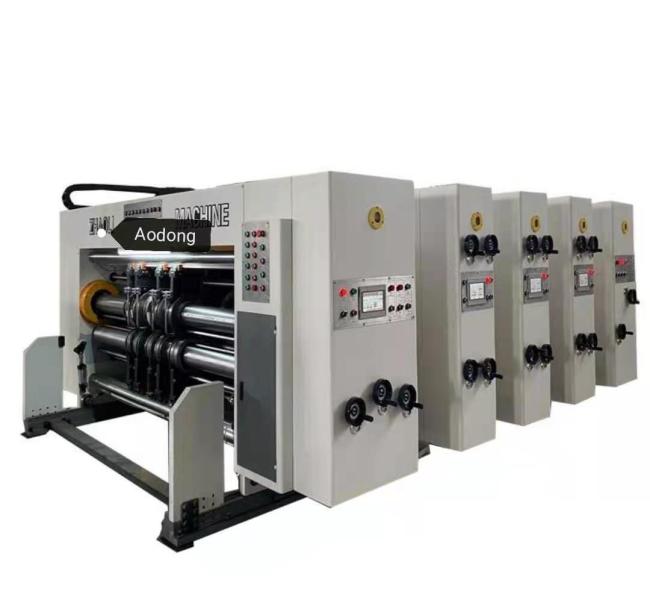

2021 New 3 Colour Flexo Printing Slotting Machine Corrugated Cardboard 3 Colors Printer&Slotter In India
2021 New 3 Colour Flexo Printing Slotting Machine Corrugated Cardboard 3 Colors Printer&Slotter In India
Automatic flexo carton printing slotting die cut machine with stacker is vacuum absorption auxiliary lead edge feeding system. It can slot, cut the corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The slotting phase adjustment is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously. Adopt multi-group communication type computer adjustment, main computer adopt big screen PLC control. Hanging plate with foot type on-off. Scorer wheels are pre-press and double press. This small machine is easy to operate and repair easily which is specialized for slotting small boxes.
| Model | ZL2300 |
| Max speed | 200 pieces/min |
| max feeding size | 2300x900mm |
| Length of printing roller | 2200mm |
| Min feeding size | 600x230mm |
| Min slotting space | 230x60mm |
| Min height of box | 115mm |
| Dimension | 4700x4500x2000mm |
1 Light alloy aluminum back-kicking vacuum absorption paper mechanism stable operation of the machine
2 Computer and electronical numerical control of the left and right paper blocking plate and the back blocking box position
3 Successive or partitioned paper feeding, infrared ray and photoelectric counting, total-locking mechanism
printing part
1 High precision dynamic equilibrium anilox roller. Exquisite printing result
2 Printing phase, computer and electrical numerical control 360 degrees adjustment
3 Crosswise adjusting the printing plate roller, computer and electrical numerical control,the control range is ±5mm
4 The space adjustment of driving roller, paper rolling roller, rubber roller and anilox roller adopts auto-locking mechanism
5 Plate piping, position returning, printing oil testing, part brake positioning and water ink cleaning mechanism
6 Installed with fast plate hanging mechanism
die-cutting part
1 Die-cutting knife, computer and electrical numerical control
2 Rubber dressing roller cutting and repairing mechanism . The rubber dressing can be used repeatedly which can save the cost greatly
3 Rubber dressing roller machinery cam-type crosswise ±35mm moving device which can prolong the life of the cutting rubber dressing
die cutting unit
(1) Plant gear structure
(2) Die-cutting phase adopt computer phase controller and electric digital 3600 adjustment. (Adjustment can be done while machine running or stop )
(3) Manual control horizontal movement position, adjustable distance: 7mm
