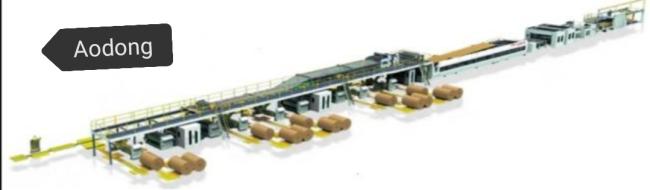

Free Instructions About 5ply The Carrugated Paperboard Production Line

Main Technical Parameter of 5 Ply Corrugated Production Line:

1. Design speed:158 m/min

2. Work speed:150 m/min

Note: Production line speed test: paper should meet the following requirements:

1) Base level not less than B level

2) Base paper moisture content 11%±1%

3) Surface paper: 120-200g/m2

4) Corrugated paper: according to flute type

5) Core paper: 125-200g/m2

3. Working width:1800mm

4. Production line length:about 85 m(Subject to the final drawings)

5. Flute type:A,B,C,E,F choice

6. Steam demand:2.5-3tons/ hour；

Steam: Max pressure 1.3Mpa Common pressure 0.8 --1.2Mpa

7. Power: 380V 50Hz (according to customers’ required)

8. Transmission direction: Right or left operation according to customers’ required

9. In case of technology changes prior notice.

10. Default Color as orange for all moving parts for harzard purpose, milk white for main body with dark blue straps. Or customized color according customers’ requirment.

Note: Customer’s self –preparing material and issue:

1. Compressed air pipelines, glue pipelines

2. Power, electrical wire to operation box

3. Water pipelines, water barrel, electrictiy and all wiring to control box and motor of machine

4. 4-6 ton boiler, steam ground foundation, steam piping to machine side

5. Raw materials (paper roll, corn starch, caustic soda, sodium borax) to test machinery

6. Engine oil, lubricating oil and hydraulic oil

7. Installation cost such as lifting, transaction and commissioning;

8. electric and water should be ready before instllation arrive;

9. The ground map will be sent to client before machine arrive client’s plant, the foudation could be ready for insllation before unload the machines..

Installation Request:

1, Seller’s 3 qualified technicians will be sent to client’s plant for installaion supervising, on

electrician, one mechnical personel and one computer expert. Rount Air ticket and local accomodation and meal cost will be covered by client, and 80USD per day per person for mechnic and electric personel, and 100USD per day per person for computer personel.

2, Seller will have a 5-8 persons installation team for installing machine, and certain amount ofpersonel for welding works and also the piping for boiler to corrugating line.

3, Before the installation team arrives, custoemr should have industrial and normal lighting electricity, installed boiler and water ready, especially the electricity wired production warehouse must has very good grounding arrangement, and unsufficient or inproper grouding may cause affection on the inverter, computer and drivers of the machineries.

4, Customer may have the installation foudation been prepared ready as the confirmed foudation map in order to speed up the installation and process.

1. Customer should prepare or rent all necessary euipments and tools includes but not only crane, forklift, specical clamps.
