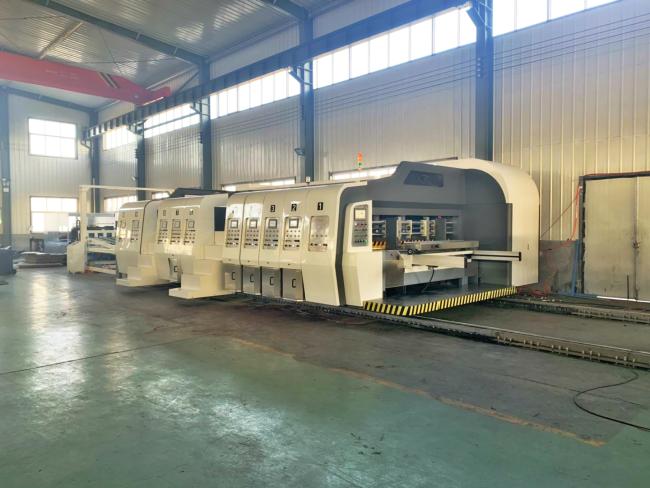

HD Flexographic Box Printing Machine , Corrugated Rotary Die Cutter
carton box flexo printing slotting rotary die cutting vibration stacker machine
|
No
|
Item
|
Data
|
|
|
|
1
|
Power
|
37.5KW
|
|
|
|
2
|
Design Speed
|
200m/min
|
|
|
|
3
|
Printing Area
|
1200X2400mm
|
|
|
|
4
|
Max. Feeder Size
|
1200x2600mm
|
|
|
|
5
|
Min. Feeder Size
|
350x700mm
|
|
|
|
6
|
Slotting Size
|
280x100x280x100
|
|
|
|
7
|
Plate thickness
|
7mm
|
|
|
|
8
|
Max. die size
|
1200x2500mm
|
|

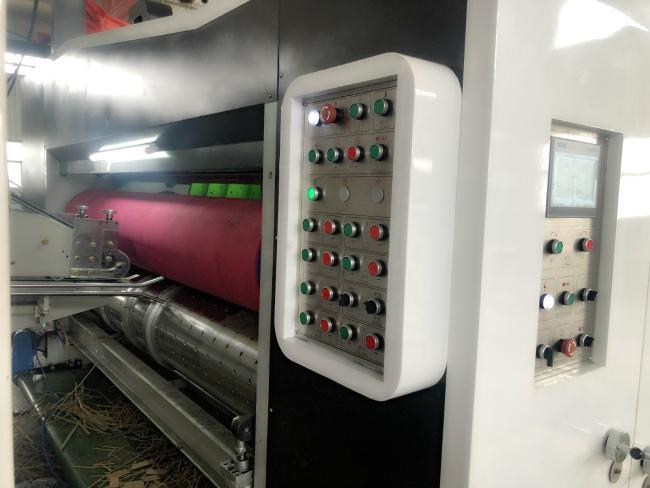

This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.
1.Computerized control,automatic adjustment.
2.Precise planet-geared phase adjustment device.
3.Anvil roll can be motorized adjust in circumferential & traversal;direction to prolong its usage life.
4.Quick change over rubber anvil,good wear-ability.
5.Speed difference compensation system make line speed be synchronization,it can ensure die-cutting precise.
6.Through repair anvil roll by special device,anvil roll can be product cost down
