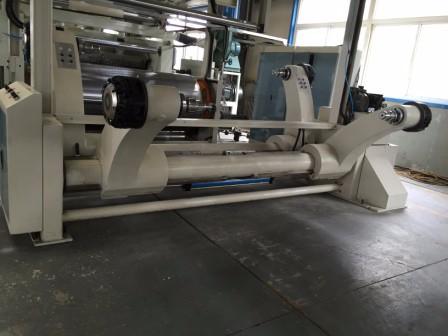

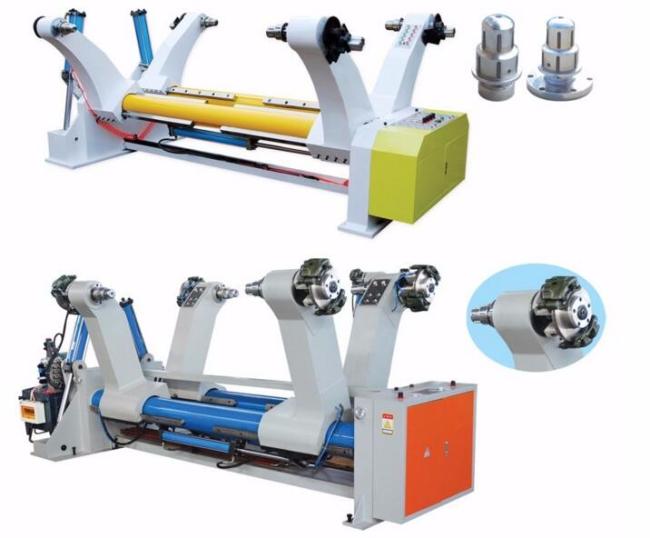

Hydraulic Shaftless Mill Roll Stand Symmetrical Structure Easy Operation
hydraulic shaftless mill roll stand corrugated carton box making machine
Product Description
Symmetrical structure, can carry two craft paper at one time, which can work without brake.
Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic
pressure. feeding craft / reel paper quickly.

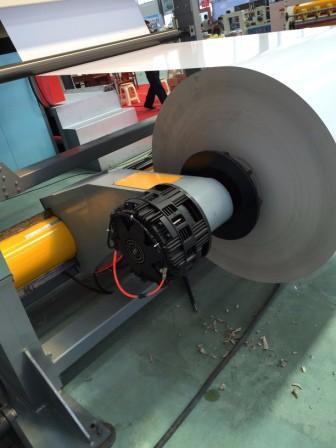

Brake: pneumatic brake
Double Level Auto Expander, Expander head:3/4 inch Double Level.
Specifications of stand:
1,Reel Stand driven by hydraulic
2,Kfat paper range
Width: Max:2200mm Min:1000mm
Diameter:Max:1500mm Min:350mm
Max Weight:2500Kg(One side)
3,Main roller dia:215mm
4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa
5,Power: 380V 50Hz

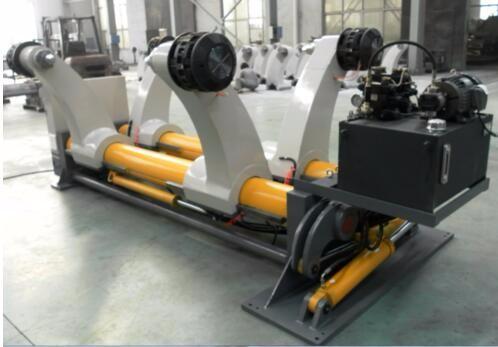

Specifications of hydraulic system:
1Working Pressure(MPA):16---18Mpa
2Hydraulic Cylinder Range(Lift/Down):110×440mm
3Hydraulic Cylinder Range(Clamp/Loosen):80×800mm
4Hydraulic Station Motor Power:4KW Short Time(S2) Working Type Nominal voltage:380V 50Hz
5 Hydraulic Station Electromagnetic Valve Working Power:220V 50 Hz
Spare Parts that need to buy from others and main materials:
| Main Parts’ Name | Band or Origin | Material |
| Main Rollers |
Tianjin Iron & Steel Group Co.,Ltd Link: http://www.tgsteel.com |
Thick wallboard seamless steel tube: ∅219mm |
| Stand Arm | HuaQing | Q235A Weld Assembly |
| Wallboard |
Jigang Group Co.,Ltd Link: http://www.jigang.com.cn |
Q235A Weld Assembly |
| Bear |
HRB(Link: http://www.hrb.asia/) ZWZ(Link: http://www.zwz-bearing.com/) LYC(Link:http://www.lyc.cn/) |
|
| Expand Paper Holder | Hebei | |
| Electric Appliance | Huaqing | |
| Pneumatic Component | AirTac(Link: http://www.airtacworld.com) | |
| Hydraulic Component | Star Hydraulic(Link: http://www.china-stars.com.cn) | |
| Hydraulic Pipe | Zaozhuang | |
| Seal Packingring for Hydraulic cylinder | Taiwan | |
| Brake for Pneumatic Cylinder | Hebei |
