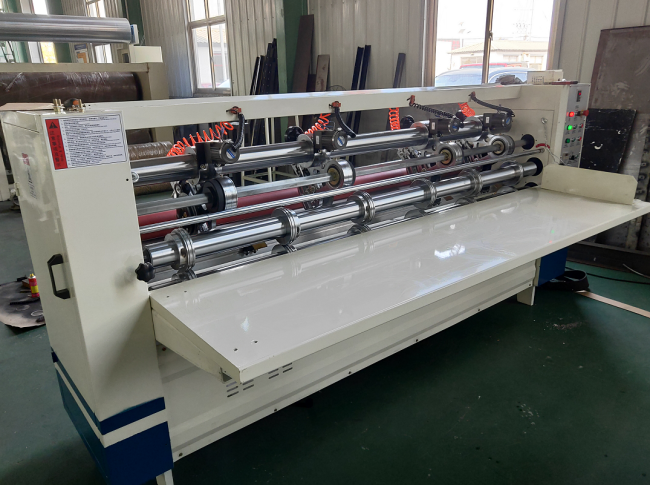

Rotary Creasing & slotting blade machine cardboard creasing machine

structural feature:

Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly.

the whole machine can remove left and right,cycloid reducer to adjust.

Cutter and easy to adjust the pressure line, the error ±0.5mm, automatic sharpening device, you can achieve timing Brothers, with intermittent Brothers and other features.

The machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters.

regular technical parameters:

1,effective width:1800mm

2,The maximum mechanical speed:80m/min

3,Mechanical configuration: 5knives 8lines

4,The minimum width of the cutter:135mm

5. The maximum width of the cutter:1850mm

Power motors and electrical parameters:

1,Line cutter line motor:0.4Kw 2,Knife wheel drive motor:5.5KW
